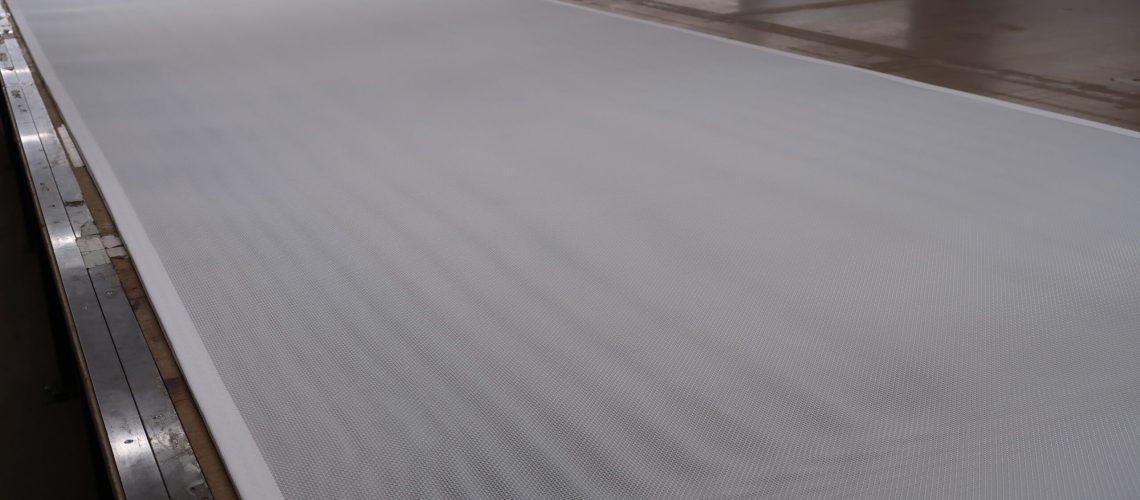

Polyester Mesh Belting – Polyester monofilament process conveyor belting is available in a wide range of yarn thicknesses and openings. Polyester mesh belting is known for its high reliability, easy handling, thermal and chemical resistance, along with dimensional stability.

Applications

Polyester mesh serves as a conveyor belt for drying in the printing and textile industries, and as dewatering belts for fruits and vegetables in the food industry. These materials are also crucial in separation and filtration applications such as water treatment plants and flour mills.

Features / Benefits

Polyester belting is exceptionally durable, providing a long-lasting medium for extended lifespan. Its robust polyester fibers ensure excellent stability.

Material Properties

• Excellent chemical and thermal resistance, with high permeability for easy cleaning.
• Food approval: USFDA approved.
• Working temperature: +302°F to -103°F in dry conditions, and above 158°F in wet conditions (polyester may undergo hydrolysis in hot, humid conditions, especially in the presence of steam).

Additional Information

Available in widths up to 118 inches wide in various styles.

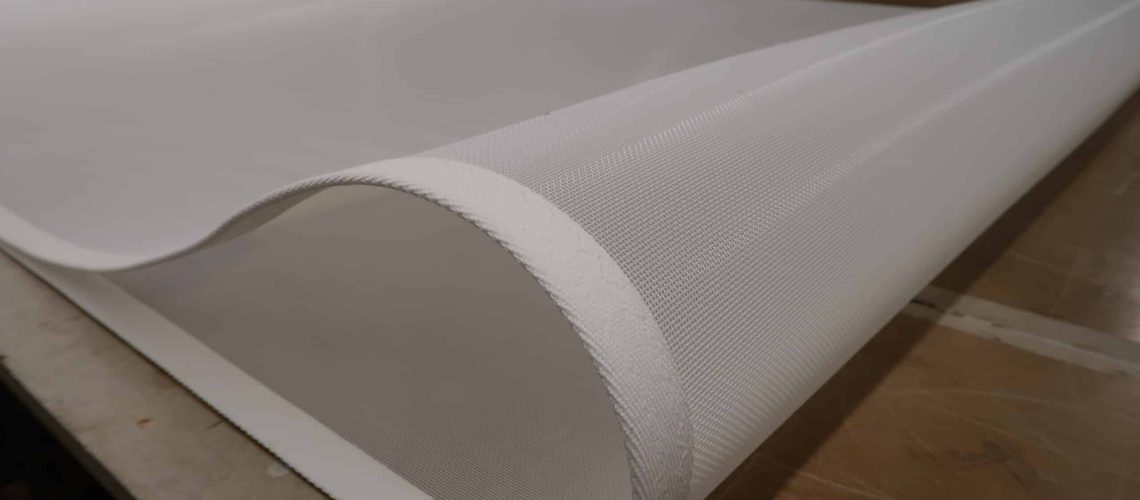

Special attention is given to the jointing mechanism of the belts, which can be manufactured in several ways ranging from metallic clipper types to integrated spirals. The edges are reinforced with special materials to resist fraying and abrasion, achieved through impregnation, encapsulation, or RF welding.
