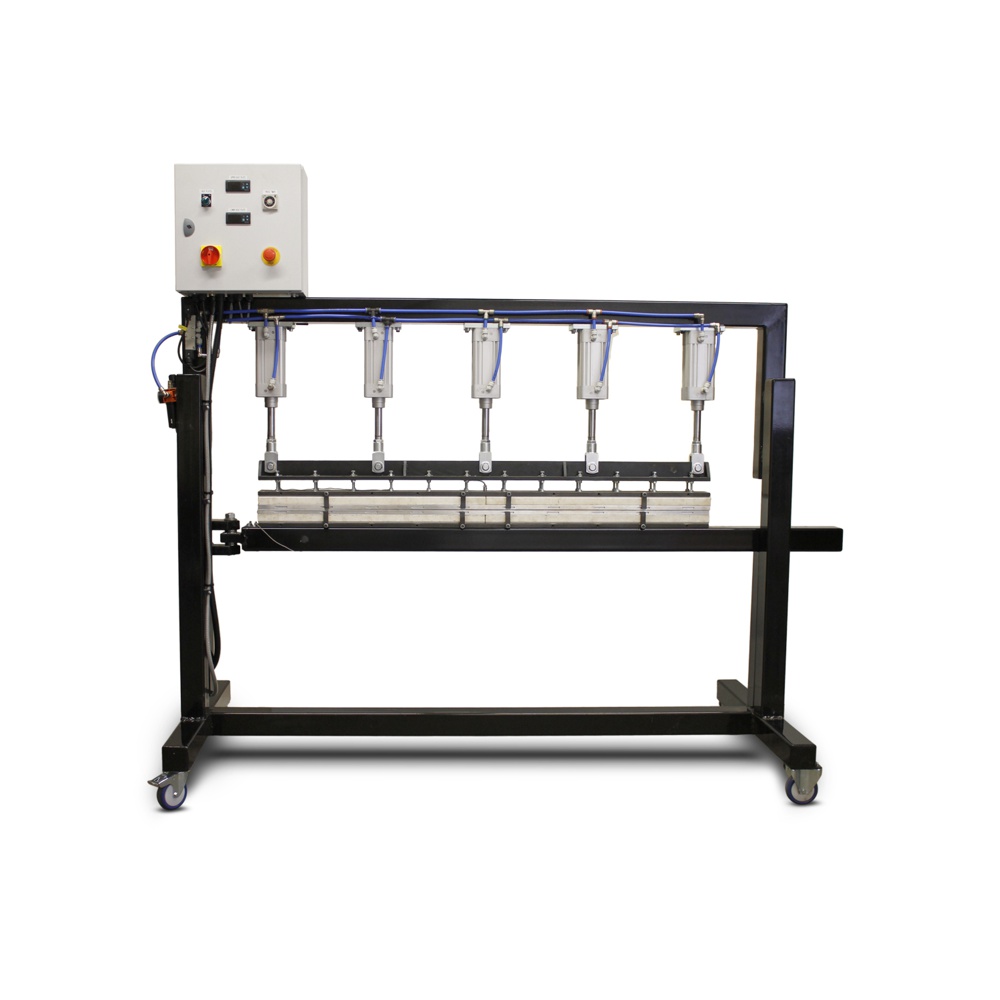

PTFE Belt Welding Press

Our PTFE (often incorrectly referred to as Teflon®) belt edge welding press is designed for PTFE belt manufacturers and products, it creates a flat and true weld to reinforce edges of PTFE conveyor belts.

Using Festo pneumatic cylinders and powerful heating elements for efficiency, its lower beam can be swung out to allow for belts to be slid on and off the platens.

Both joints and edges can be sealed due to the offset platen design, it can bond/weld most types of PTFE coated fabrics and materials. The operation start is offered by foot pedal or dual button for safety. Worldwide Shipping Available

£18,000.00 Exc. VAT

Description

PTFE Belt Welding Press – Applications
Our PTFE (often incorrectly referred to as Teflon®)  welding press can be used for welding together the joints on PTFE conveyor belting. It is also used to weld the edges of PTFE mesh belts as well as non mesh, closed weave types.
Features & Benefits of Our PTFE Belt Welding Press
• Easy to use with independent top and bottom platen control.
• Powerful 2400 watt heaters for fast ADN efficient heating up times.
• Build in castors to allow easy positioning in the work area.
Material Properties
● Strong mild steel box section with powder coated frame. ● High quality FESTO pneumatics.
Additional Information
Available 6 weeks from order as we make these machine to requirement. Custom welders can be built to your specification.
If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386. We can cater for any special requirements you require for PTFE Welders, our team can help assist you with dispatch, customs and shipping, we ship to over 30 destinations and have been established for over 20 years. Please get in touch with our Technical Sales team on <a href=”tel:00441422366386″>+44 (0) 1422 366386</a> or email at <a href=”mailto:sales@techbelt.com”>sales@techbelt.com</a>
Specification
• Model: BEP – 1500 • Maximum Temperature: 380°C
• Maximum Weld Length: 1500mm • Power: 4.6kw

Additional information

Please Select Size and Model

80mm x 1500mm Platen
