ptfe coated fabrics

PTFE Coated FabricsTechbelt PTFE Coated Fabrics are high performance materials used in a wide range of applications.

PTFE coated materials offer a non stick surfaces with excellent resistance to extremes of temperatures.

Applications for PTFE coated fabrics

PTFE coated fabrics are used in a wide verity of industries and applications.

• Packaging – PTFE adhesive tapes.

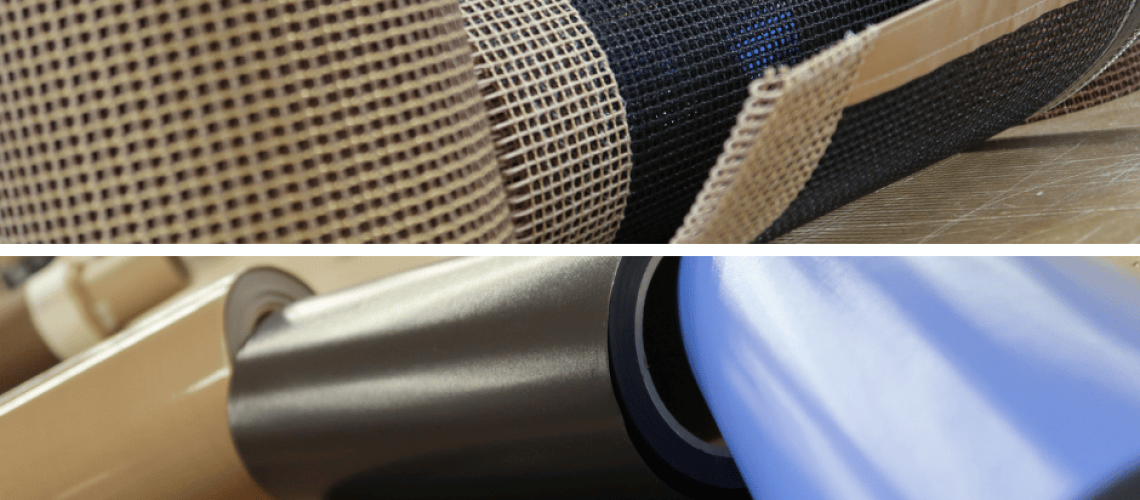

• Printing – Open weave mesh belting.
• Textiles – Closed weave and mesh belting.
• UPVC window welding – Non and self adhesive materials.

Features / Benefits

The properties of the PTFE coated materials ensure that the fabrics are an excellent choice for use with cooling chambers and freezing temperatures as well as high thermal environments. The PTFE is coated on to either a fiber glass or Kevlar substrate. Both substrates offer high levels of temperature resistance however the Kevlar can be beneficial in applications where strength is required or where steam is present.

Material Properties

• Chemical inertness: Affected only by a few rare substances at very high temperatures
• High release from sticky materials ‘non-stick’
• Easy cleaning (nothing bonds permanently)
• Low friction coefficient: 0.04 – 0.10; depending on load and surface speed
• Chemical corrosion and moisture resistance
• Mildew and fungus resistance
• Outstanding electrical and dielectric properties
• Ultra-violet, Infra-red, microwave & radio frequency resistance
• Non combustible – self extinguishing
• Low thermal expansion: < 5%
• Lightweight and energy efficiency for

Additional Information

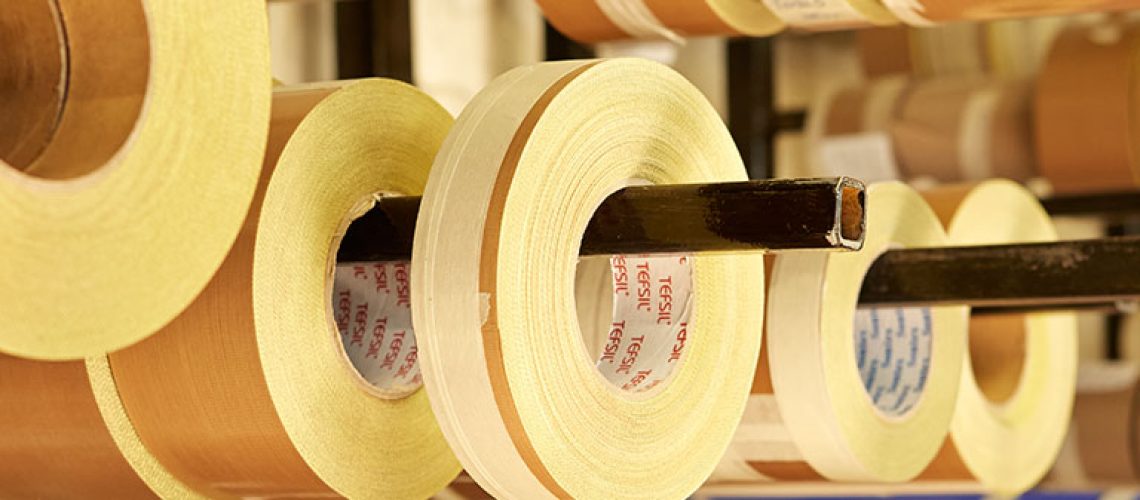

Techbelt PTFE coated fabrics tend to be offer as either slit rolls in adhesive backed form, sheet rolls in non adhesive or converted to specialist bespoke conveyor belting. Material widths can vary from but can be offered up to 5000mm wide depending on the grade or requirement.

Contact techbelt today on 0044 (0) 1422 3663 86 or e mail our sales office sales@techbelt.co.uk
