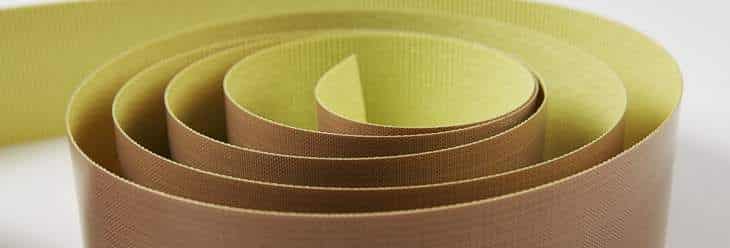

PTFE coated glass cloth comes in a variety of thickness and styles. We tend to split them in to a few different products types.

Open Mesh Glass Cloth

This type of PTFE coated glass cloth is woven in a mesh or net. There are a number of opening sizes however 4mm x 4mm is the most popular.

Other examples are 1mm, 2mm, 5mm adn 10mm square mesh apertures.

We take our open mesh roll stocks and produce conveyor belts that have reinforced edges and a mechanical fastener.

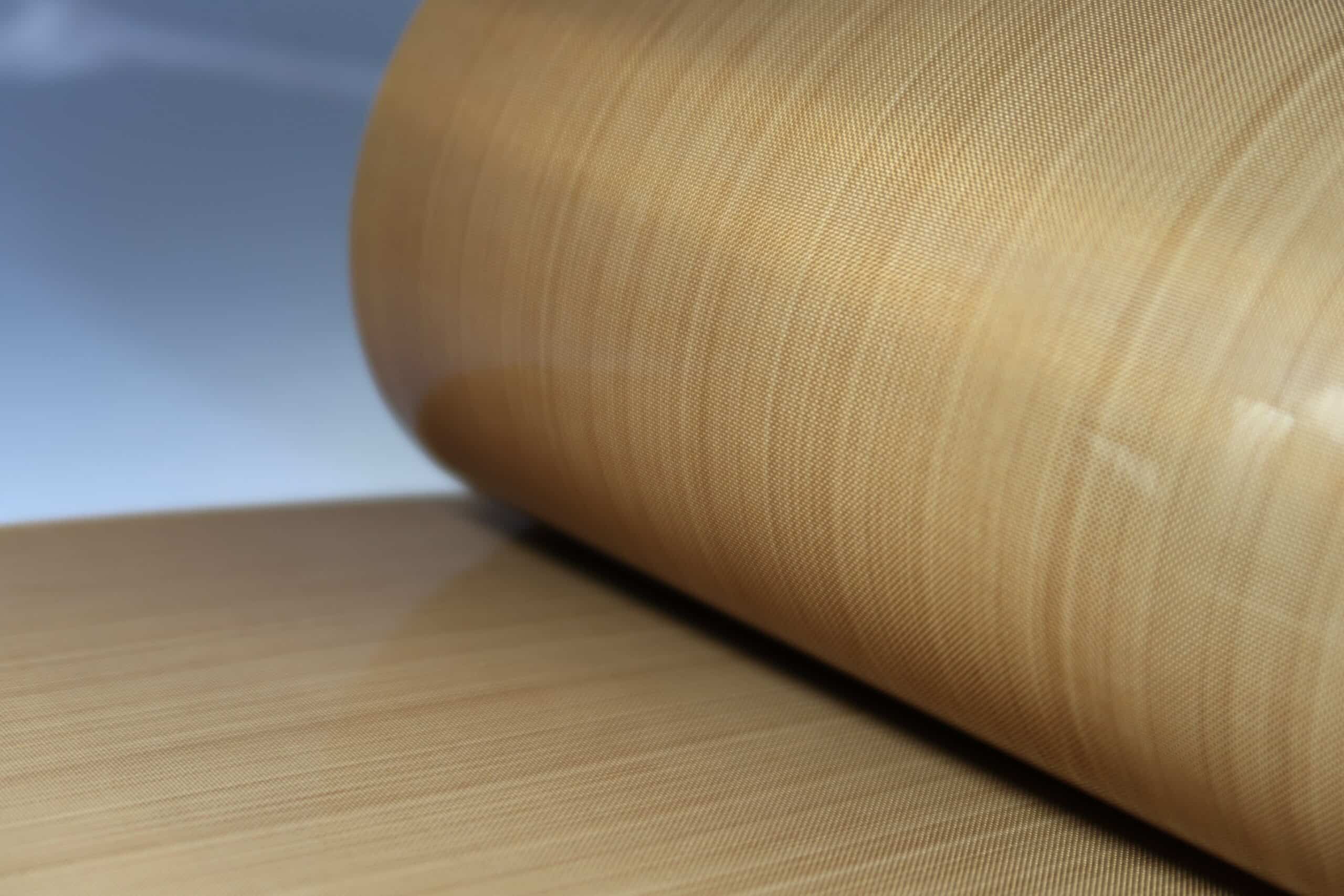

Closed Weave Glass Cloth

Closed weave glass cloth materials are non mesh type materials. This version is available in multiple thicknesses and can be specified by our Technical sales team depending your application and requirement.

Closed weave glass cloth tends to be woven with what is referred to as a “twisted yarn” glass cloth. This provides a stronger yarn and is ideally suited when using this material as a conveyor belt.

Different coating mixtures and colours are available. For example, Blue colour is popular when used on food processing lines.

PTFE Coated Glass Cloth Tapes

These materials are also like the closed weave glass cloth materials but tend to be thinner. The other difference is they are made with a glass cloth that is referred to as a “singles” grade. Unlike the “twisted” grade, this is now wound as much therefore is not as strong.

This coated glass cloth is ideal for making in to self adhesive backed tapes. In order to do this, silicone or acrylic adhesive is applied to use surface. The surface being applied to needs to be chemically etched in order to allow the adhesive to bond to the otherwise non stick surface.

Download Techbelt PTFE Coated Fabrics PDF Help Sheet

PTFE Coated Glass Cloth Tape
Is offered in four different grades and are sold under our registered trademark Tefsil®.
