PTFE Mesh Belts – PTFE open mesh belting is ideally suited for conveying products within highly efficient air distribution systems allowing optimised moisture removal to take place and is commonly used within ultra violet and infra red dryer units.
The open area allows maximum air flow optimising drying times whilst its extreme properties make it a natural choice for dryer manufactures.
PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.
Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.
Features and Benefits
PTFE open mesh conveyor belting is light weight and cost effective and is therefore easy to handle and less expensive than wire alternatives that can be difficult to replace. Often supplied with a metallic clipper type fastener these style of belts are easily removed and replaced, minimising downtime and saving money. This material can be offered in carbon loaded black, providing antistatic properties.
1) Temperature resistant from -73°C to plus 260°C
2) Chemical Inertness
3) Ultraviolet, Infra-red, microwave, radio frequency resistance
4) Food Approval (USFDA)
5) Non-Stick surface
6) Lightweight and energy efficiency for economical operation

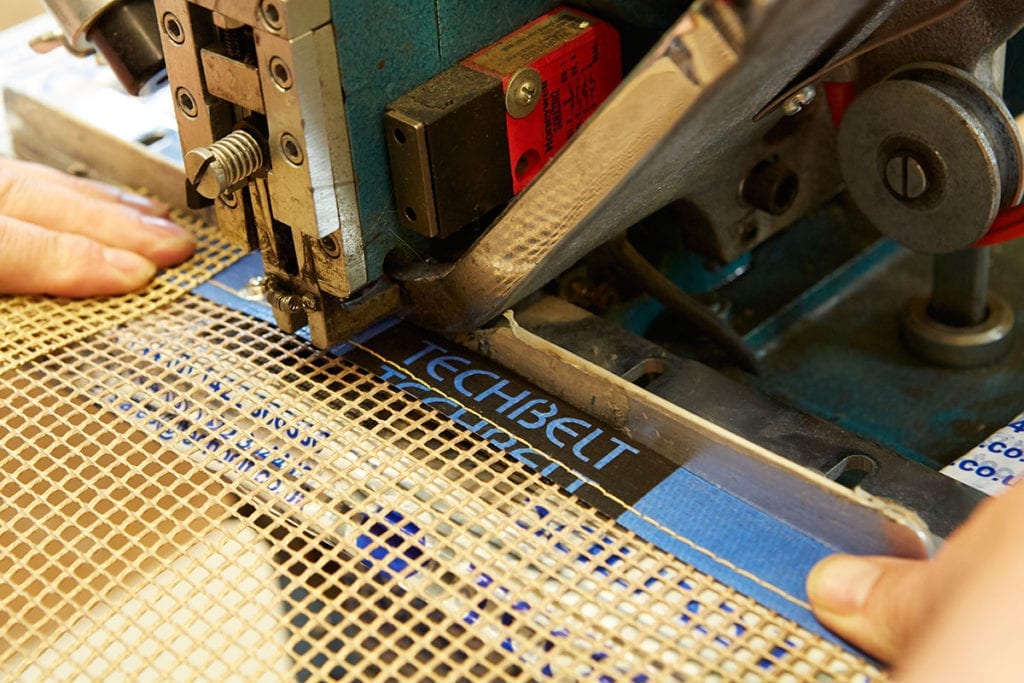

4×4 open area mesh is available in widths up to 5000mm wide and can be supplied at any length required. In addition film, glass or kevlar can be applied as edge reinforcement depending of the environment it will be used within. There are various methods of joining screen-printing belts however the metallic clipper or spiral types are more typical.
We are happy to ship goods Worldwide, the cost of this will be dependent on the location and either the volumetric weight or the product weight including packaging whichever is the greatest, the cost of this will be confirmed at quotation stage of your order. For more information visit
Techbelt Worldwide Shipping Information Page
Aftermarket PTFE Mesh Belt for Fleissner Oven Dryer£1,724.00 Exc. VAT Select options
Aftermarket PTFE Mesh Belt for Natgraph Dryer£505.00 Exc. VAT Select options
Aftermarket PTFE Mesh Belt for Schott & Meissner Oven Dryer£1,225.00 Exc. VAT Select options
Dryer Belts for Panther Machine£99.90 – £358.33 Exc. VAT Select options
Dryer Belts for Trumax Machine£328.70 – £498.52 Exc. VAT Select options
