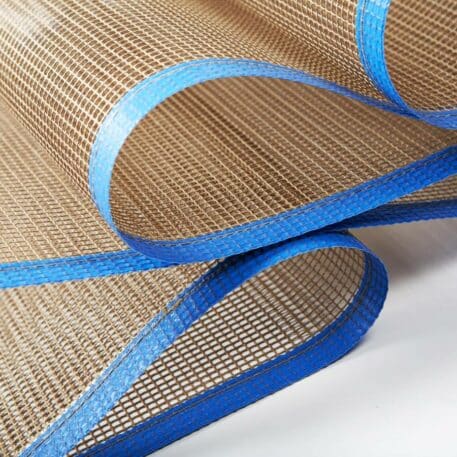

Aftermarket PTFE Mesh Belt for Fleissner Oven Dryer

Fleissner Oven Belt is made by Non-woven materials are often produced in a double belt hot oven system. These systems such, as the ones Fleissner manufacture, use two PTFE mesh belts top and bottom to sandwich polyester fibres together.

The fibres are then subject to heat then cooling to thermoform as required. Techbelt manufactures aftermarket PTFE open mesh dryer belts to fit any Fleissner oven on the market today.

Please note that our products are not genuine OEM parts however they are made using the highest quality materials on the market in our facility in the UK. If you don’t see your size please contact us with your requirement for a price

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**

International Shipping Available

£2,068.80 Exc. VAT


Fleissner Oven Belt – Applications
PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.

Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.

Features and Benefits of Fleissner Oven Belt
PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace.
Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money.
This material can be offered in carbon loaded black therefore providing antistatic properties.
Material Properties of Our Fleissner Oven Belt
• High temperature resistant – up to 260°C • Excellent release properties • Exceptional chemical resistance
Available in widths up to 5200mm, manufactured in various thicknesses and weights
If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386
• Reference: GM2-95-NA (4×4) • Colours: Brown / Black
• Width (Fleissner Belt): 4000mm • Tensile strength: 2400 N/5cm
• Length (Fleissner Belt): 28000mm • Temperature resistance: 260°C
• Weight: 546g/m2 • Thickness: 1.128mm

Download PTFE Open Mesh Belts Data Sheet

Additional information

Please Select Size and Model

4000mm x 28000mm
