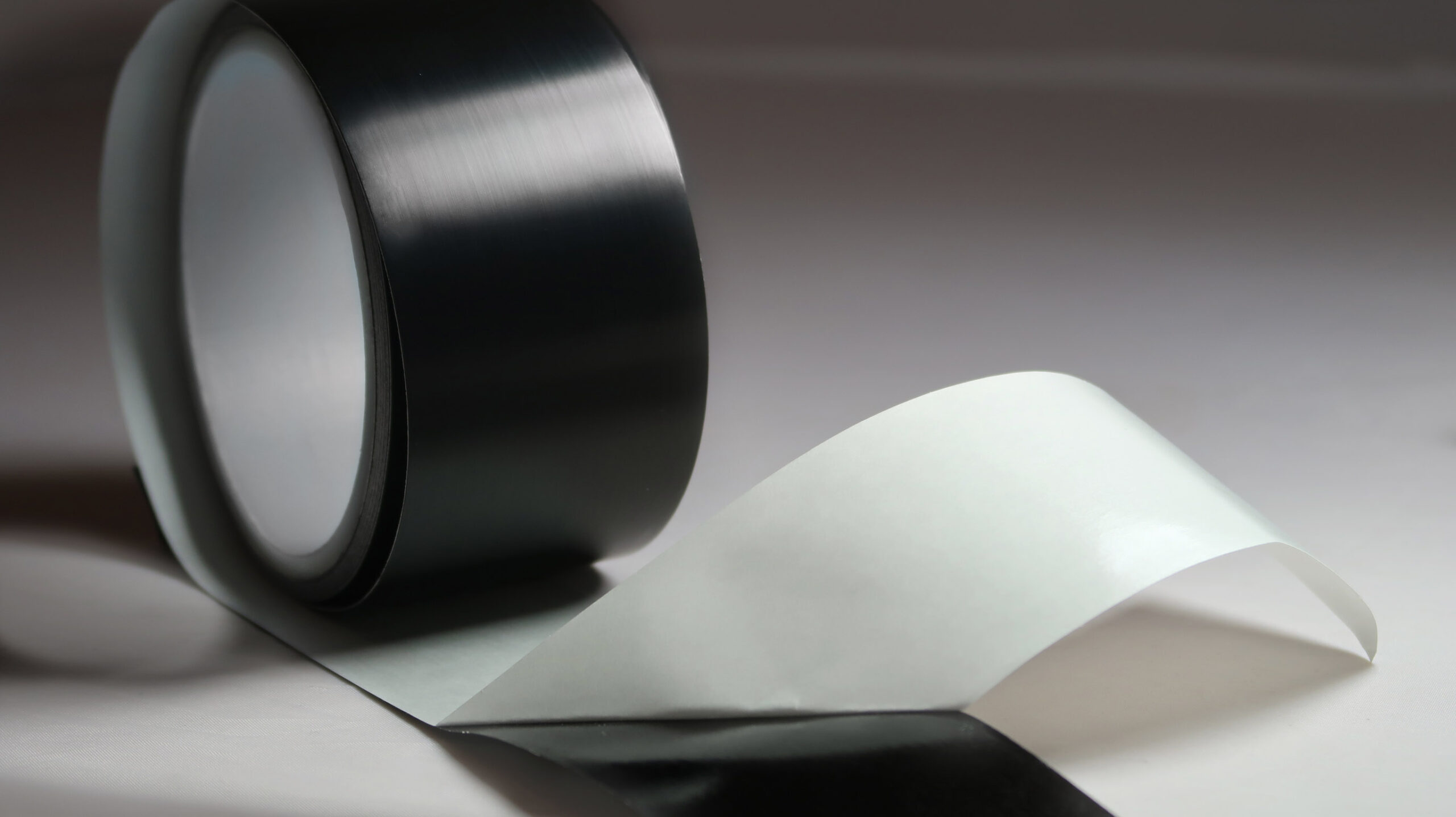

Techbelt Anti-Chafe Tape is a high-performance UHMW polyethylene protective film engineered to prevent abrasion, friction damage, and surface wear in demanding marine and industrial environments.
Manufactured from ultra-high molecular weight polyethylene (UHMW-PE) and coated with a pressure-sensitive acrylic adhesive, this tape forms a durable, low-friction barrier between moving components and vulnerable surfaces. It is widely used in rigging protection, deck hardware reinforcement, and areas exposed to repetitive line movement.
Supplied with a disposable paper release liner, installation is clean and straightforward, allowing precise positioning and strong adhesion to prepared surfaces.
UHMW stands for Ultra-High Molecular Weight Polyethylene.
UHMW-PE is an advanced thermoplastic known for:
Exceptional abrasion resistance
Very low coefficient of friction
High impact strength
Excellent chemical resistance
Long service life under repetitive mechanical stress
In standardized wear testing, UHMW-PE demonstrates abrasion resistance that can exceed carbon steel, making it suitable for high-friction marine applications.

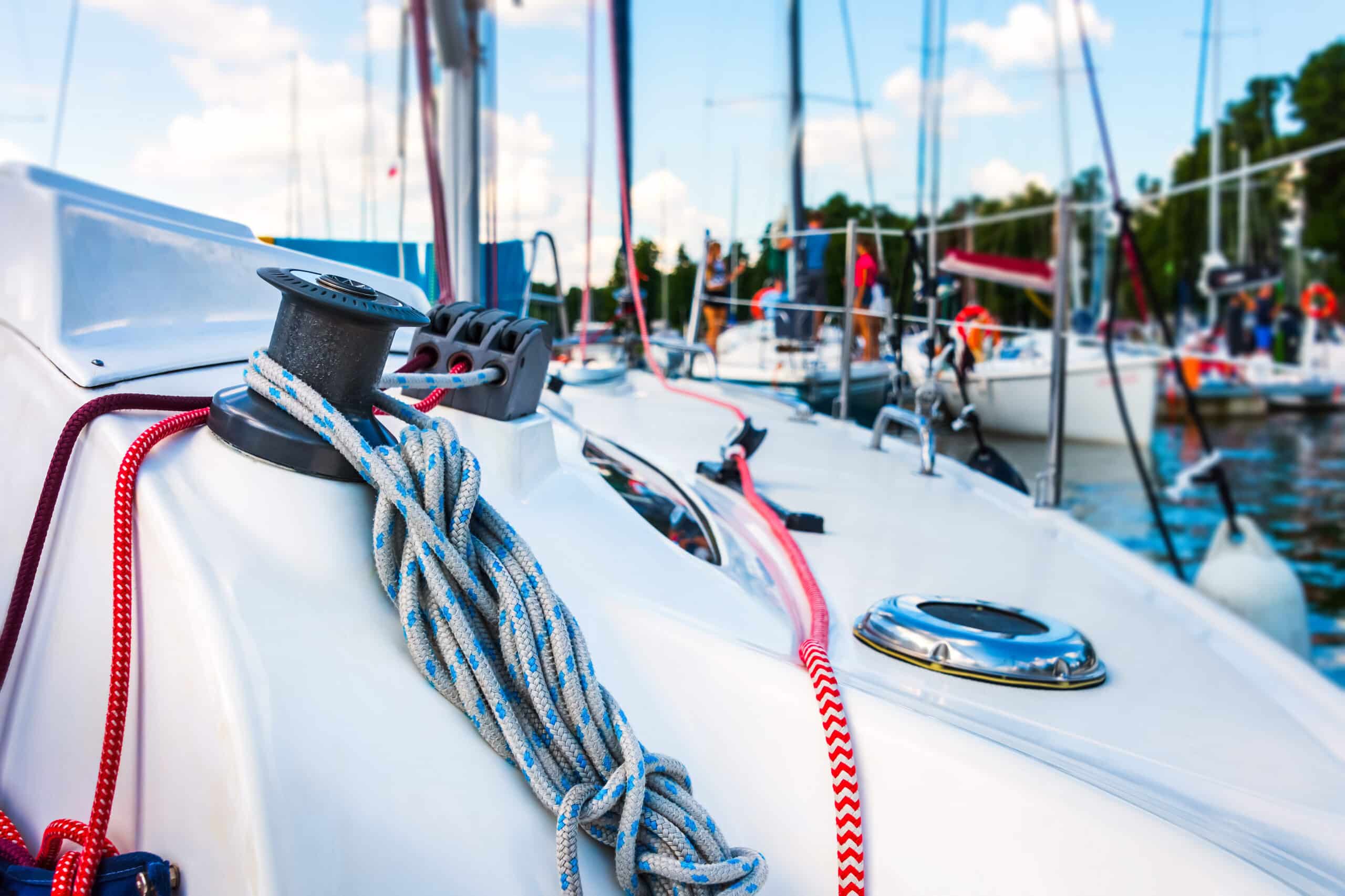

Around pad eyes and deck hardware
Sail contact points
Mast and spreaders
Under the boom
Rope burn protection zones
Sliding or friction-prone surfaces
It is also suitable for industrial equipment protection where repeated contact causes surface degradation.
Beyond marine use, UHMW anti-chafe tape is widely specified wherever surfaces need protecting from repeated friction, impact, or abrasion. Common industrial applications include conveyor side guides and rail protection, chute and hopper liners, wear pads on production machinery, bottling plant guide rails, and packaging equipment surfaces subject to repetitive contact. The same low-friction, high-impact properties that protect a boat’s rigging make it equally effective in factory environments where metal-on-metal or component-on-component contact causes premature surface degradation.
Ultra-high molecular weight polyethylene film
Pressure-sensitive acrylic adhesive system
Superior abrasion resistance
Self-lubricating low-friction surface
High impact resistance
UV resistant (black grade)
Moisture and saltwater resistant
Paper release liner for controlled application
| Property | Typical Value | Test Method / Reference Standard |
|---|---|---|
| Base Material | UHMW Polyethylene (UHMW-PE) | — |
| Adhesive Type | Acrylic Pressure-Sensitive | — |
| Film Colour | Black (UV Resistant) | — |
| Total Thickness | 0.13 mm – 0.50 mm (5 – 20 mil) | ASTM D3652 |
| Tensile Strength | 20 – 35 MPa | ASTM D638 |
| Elongation at Break | 300 – 400% | ASTM D638 |
| Coefficient of Friction (Static) | 0.10 – 0.22 | ASTM D1894 |
| Abrasion Resistance | Excellent | ASTM D4060 (Taber) |
| Impact Strength | High | ASTM D256 |
| Operating Temperature Range | -150°C to +80°C | Typical UHMW Range |
| UV Resistance | Good (Black Grade) | — |
| Water Absorption | <0.01% | ASTM D570 |
Note: Values shown represent typical industry performance ranges for UHMW-PE tapes. Confirm final product tolerances against your internal test data.
Ensure surface is clean, dry, and free of oils or contaminants.
Cut tape to required length.
Remove paper liner.
Apply firm, even pressure to activate adhesive bond.
Allow dwell time for full adhesive performance.
Proper surface preparation directly affects long-term adhesion performance.
Anti-chafe tape is a specific application of UHMW polyethylene tape engineered for high-friction protection in marine and industrial environments. While standard UHMW tape is used broadly for low-friction surfaces, anti-chafe tape is selected for its combination of exceptional abrasion resistance, impact strength, and UV stability — particularly in saltwater and outdoor exposure conditions. Techbelt supplies both and can advise on the right specification for your application.
Yes. Although it is widely known in the marine industry, UHMW anti-chafe tape is equally effective in industrial settings. It is commonly used on conveyor guides, chute liners, wear pads, bottling plant rails, and packaging machinery wherever surfaces experience repetitive contact or friction damage. Techbelt supplies into both marine and industrial sectors.
Techbelt anti-chafe tape is available in thicknesses from 0.13mm (5 mil) to 0.50mm (20 mil). Custom widths and lengths can be cut to order by our in-house slitting team, typically with same-day dispatch. Contact our technical sales team to discuss your specific requirement.
Service life depends on the severity of the application, surface preparation quality, and environmental conditions. UHMW-PE has an exceptionally long wear life — in standardised Taber abrasion testing it outperforms many metals. On a working boat with well-prepared surfaces and correct installation, anti-chafe tape typically outlasts multiple seasons of use. In industrial environments, performance is similarly durable under normal operating conditions.
Yes. Our in-house slitting department can cut anti-chafe tape to custom widths and lengths. We aim to dispatch slit tape orders within 1–2 working days. Contact the technical sales team on +44 (0)1422 366386 or at sales@techbelt.com for a quotation.
