Belt Edging Press & Joint Press

PTFE Teflon Belt Welding Press Available to buy

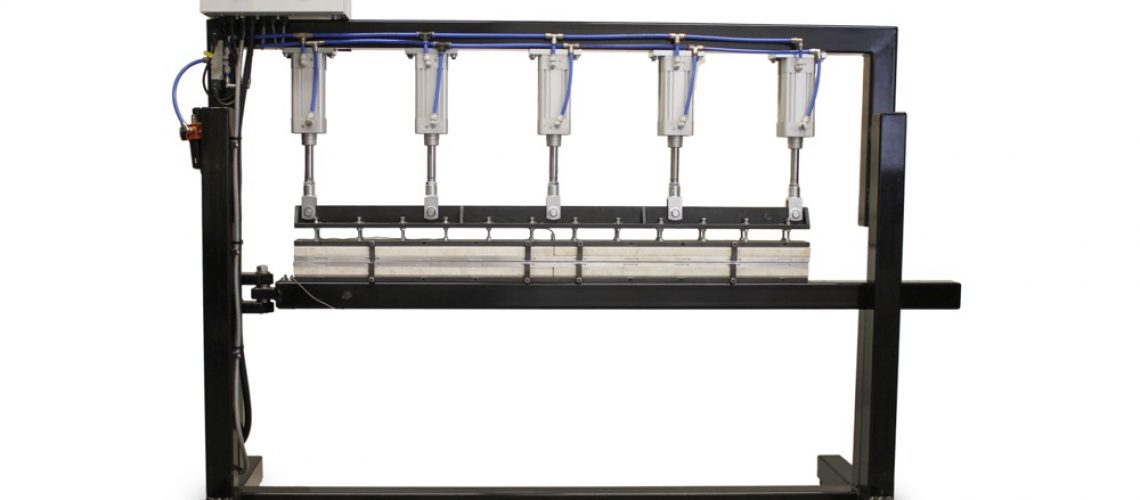

Belt Edging Press MODEL: BEP – 1500

MAX TEMPERATURE: 380°C

MAX WELD LENGTH: 1500mm

POWER: 4.6kw

Our PTFE belt edging press and welding press is designed for PTFE belt manufacturers who wish to weld and reinforce edges of PTFE conveyor belts. We have developed this machine over time as we use these machines for our belt production.

The platens design is such that it offers a flat and true weld and allows for the natural thermal expansion seen in aluminium which is the material used for the platens. The standard length of the platens are 1500mm but can be offered shorter or longer if required.

Powerful heating elements are used in the belt edging press to allow for efficient heating with no loss of heat when in use and come in 110V or 230V upon specification.

We specify Festo pneumatic cylinders as they are high quality and can withstand the temperatures they are in close proximity to.

Belt Edging Press – Additional Features


In addition to being able to weld belt edges due to its offset platen design, the lower beam can be swung out to allow for belts to slide on and off the platens. This means the belt joint can be sealed on the belt edging press and slid off easily.

The control panel is mounted on the machine and allows the user to set top and bottom platen temperatures as well as set the weld time (the amount of time the platens are closed).

The operation start is offered in both a foot pedal format or a due button press for safety.

This equipment and all machines we manufacture have protected Intellectual Property rights and Copyrights owned by Technical Engineering Services Ltd and cannot be copied in anyway. By purchasing this equipment you agree not to make any copies or supply information to any third parties that will allow them to make such copies.
