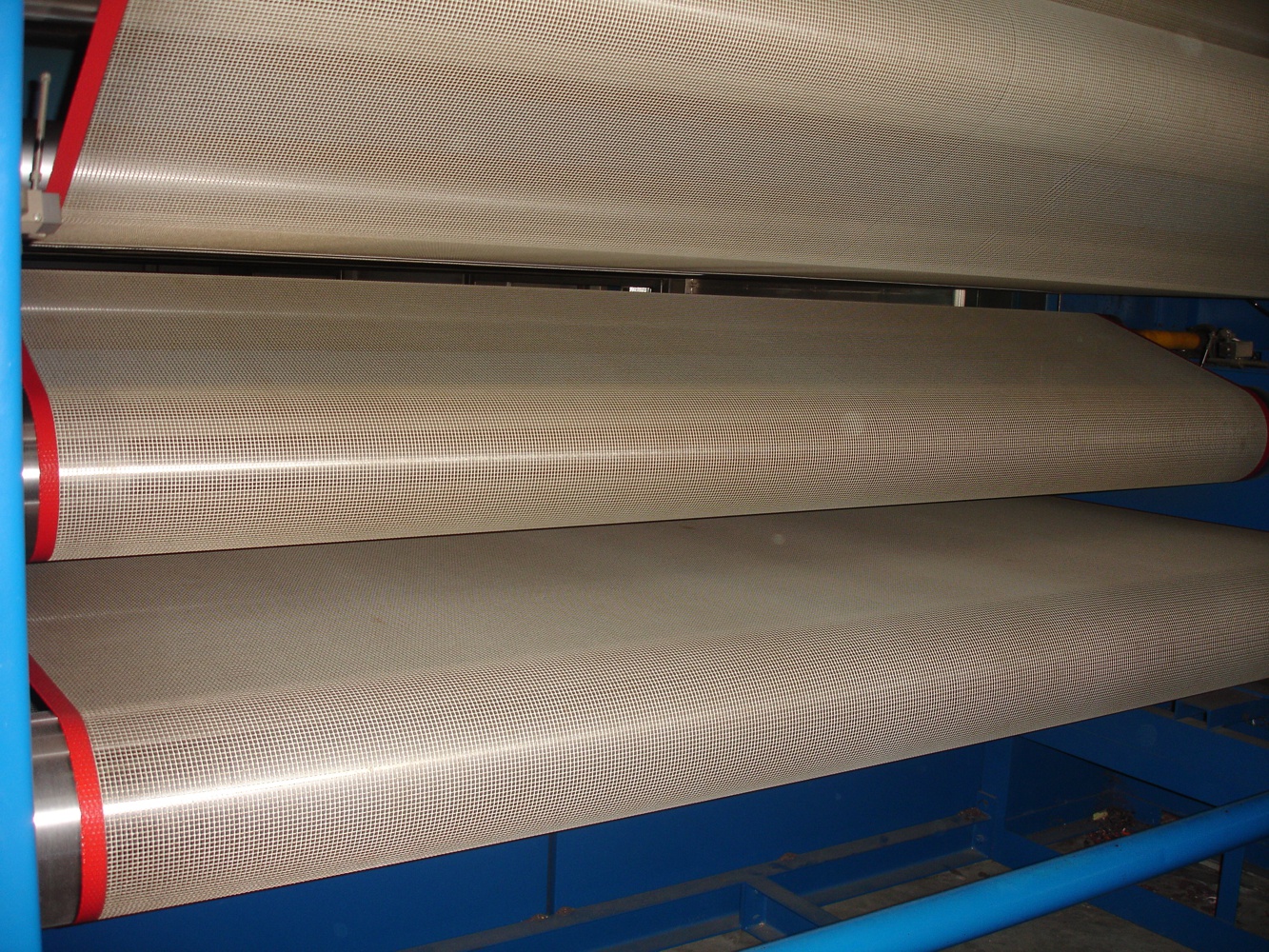

Aftermarket Dryer Belts for Relax Machine

£448.91£1,110.73 Exc. VAT

Techbelt manufactures a wide range relax dryer belts. They can be made to suit all dryer types including, Dilmenler, Ruckh, Santex, plus many more.

The main structure of the belt is an open mesh fiberglass. The PTFE coating prevents product build up from sticking to its surface for easy cleaning. P

lease check the size before ordering. Please note the lead time is 7 working days for us to manufacture. Please call if required sooner. Worldwide Shipping Available

Clear

Description

Applications
Relax dryer belts are used to shrink and stabalise fabrics whilst being dried. The fabrics can be subject to many stressed when being processed with dying and washing being a major contributor of this. After this stage the fabric needs to be relaxed, which is done by exposing the material to warm air through a dryer.
There are many brands of dryers on the market which we can manufacture a belt to suit here at our factory in the UK.
Features & Benefits
• PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace.
• Often supplied with a bullnose loop or spiral fastener belts can easily be removed and replaced therefore minimising downtime and saving money.
• This material can be offered in widths up to 5200mm wide.
• The belts come complete with edges reinforced and a Bullnose loop joint
Material Properties
• High temperature resistant – up to 260°C
• Excellent release properties
• Exceptional chemical resistance
Additional Information
Available in widths up to 5200mm, manufactured in various thicknesses and weights. If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386

Our use of a trade mark is used in good faith to indicate the intended purpose of goods (in particular as accessories or spare parts) or services as detailed in the trade marks act 1995 section 122.

Specification
• Reference: GM2-95-AS (4×4) • Colours: Black
• Standard width: Up to 4000mm • Tensile strength: 3800 N/5cm
• Thickness: 0.95mm • Temperature resistance: 260°C
• Weight: 546g/m2

Shipping Information

Shipping - World Map Placeholder
Shipping - World Map
SHIPPING INFO
We’re here to help! Call Us On on +44 (0) 1422 366386 Please don’t hesitate to contact us if you have any queries or special requirements regarding shipping or the return of one of our products
UK MAINLAND SHIPPING, INCLUDING THE ISLANDS AND REMOTE LOCATIONS
Shipping within the UK is normally a next day delivery service by Courier up to a weight of 30kgs, however remote locations, including the Islands and Northern Ireland will be a 2 day service and surcharges may apply for any item(s) above this weight or if you are located in the remote areas etc. Then please contact our Main Office on +44 (0) 1422 366386 for further information and we will be happy to provide you with a quotation for the shipping charges.
EUROPE & WORLDWIDE SHIPPING
We ship goods Worldwide, the cost of this will be dependent on the location and either the volumetric weight or the product weight including packaging whichever is the greatest, the cost of this will be confirmed at quotation stage of your order.

Video

Reseller Information

At Techbelt we offer generous discounts for volume buyers and resellers

We can also offer credit accounts talk to our sales team to find out more +44 (0) 1422 366386
