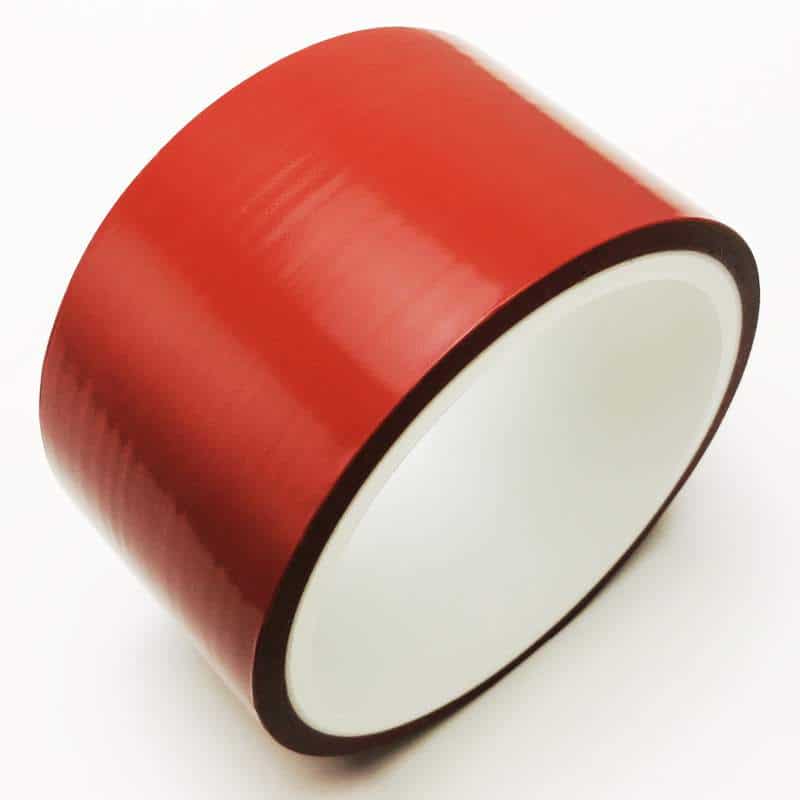

TF-R62-AD PTFE Film Tape

Techbelt TF-R62-AD PTFE Film Tape is a red-orange specially oriented polytetrafluoroethylene (PTFE) film with high temperature silicone pressure sensitive adhesive.

Ideally suited for roller wrapping for polyethylene extrusion, coating & laminating processes and electrical insulation for coils and transformers. Contact Us For Price and Availability

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to sales@techbelt.com, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**

Description

TF-R62-AD PTFE Film Tape – Material Properties
• Extremes of heat and cold resistance: -73°C to + 260°C • Chemical inertness: Affected only by a few rare substances at very high temperatures
• High Release from sticky materials ‘Non-Stick’ • Easy cleaning (nothing bonds permanently)
• Low friction co-effecient: 0.04 – 0.10; depending on load and surface speed • Chemical corrosion and moisture resistance
• Mildew and fungus resistance • Ultra-Violet, Infra-Red, Micro-Wave, Radio Frequency resistance
• Non Combustible – Self Extinguishing • Low Thermal Expansion: < 5%
• Food Approval (USFDA) • Lightweight and energy efficient for economical operation
Additional Information
Availability: PTFE adhesive Film tape is supplied in 33 metre rolls, standard widths are 25, 38 & 50mm
Prior to adhesion, clean the surface and remove any dust or oil. Whilst applying do not stretch material be careful to avoid any formation of air bubbles or wrinkles. To remove the tape, peel off slowly at an angle of 180˚. We recommend storing this product at room temperature away from direct sunlight and moisture. For optimum adhesion the tape should be used within 12 months of purchase.
This material is unaffected by biological or chemical agents, heat or cold within its temperature range, or by most areas of the electromagnetic spectrum.
PTFE (often incorrectly referred to as Teflon®) begins to soften at 260°C, increasing in wear rate, Somewhat above 300°C fumes are given off and these should not be inhaled. COSHH data is available upon request.
Specification
• Nominal Total Thickness: 0.1mm • Elongation: 100%
• Adhesion to Steel: 6.5 N/19mm • Tensile Strength: 155 N/5cm
• Breakdown Voltage: 8 kV • Temperature Resistance: -73 to +260°C
• Colour: Red / Orange • Length: 33m
• Width: 25 – 38 – 50mm • Core ID ø: 76mm

Download PTFE Adhesive Tapes Data Sheet
