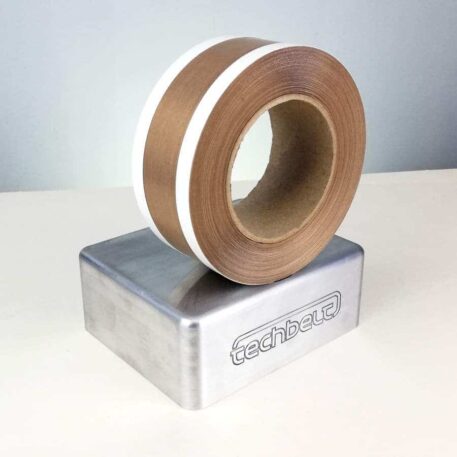

PTFE Zone Tape – White 0.15mm TEFSIL® 6

PTFE Zone Tape 0.15mm – PTFE Zone Tapes are typically manufactured at 50mm wide and have two strips of 10mm wide double-sided white tape running down both edges.

Techbelt is one of only a few companies actually manufacturing zone tape in house. The roll length on this product is 30mtr.

In Europe, these tapes are also referred to as PTFE (often incorrectly referred to as Teflon®) Duplex tapes.

If your size is not shown please get in touch with our Technical sales team so we can quote your requirement on +44 (0) 1422 366386

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**

International Shipping Available

£26.95£80.75 Exc. VAT


The purpose of the double sided tape is to allow the tape to be easily wrapped around the block where the heating wire or element would sit. The double sided tape will stick to the main body of the block leaving the exposed PTFE adhesive tape (often incorrectly referred to as Teflon®) to protect the sealing wire. PTFE zone tapes are made to order. Generally we use either 10mm or 15mm wide double sided tapes down the edges, we can slit these to your preferred size. We offer two versions of double sided tape, one standard and one high performance. All rolls come on 30 meter coils, we can break them down to 3 x 10m coils for resale. Zone tapes are primarily used in applications where it is important that the adhesive doesn’t come in to contact with a heating element or it is necessary to cover an expensive component of a packaging machine such as silicone sponge or foam
General Info
Our zone tapes are custom made in house at our manufacturing facility which allows us to offer the tapes in a number of varying widths and thickness; so if the specific size you require is not listed, please contact our sales team on: +44 (0)1422 366386 and we will be glad to assist you with your requirements
• The PTFE element of our zone tapes can operate up to 260°C
• On white edged tapes, the double sided white edging can operate up to a temperature of 150°C
• On red edged tapes, the double sided red edging can operate up to a temperature of 180°C
• Reference: Tefsil 6 • Thickness: 0.15mm
• Glass Style: Singles • Weave: Plain
• Base Weight: 106g/m2 • Coated Weight: 300g/m2
• PTFE Coating: 54% • Surface Texture: Smooth
• Tensile Warp: 270 • Tensile Weft: 240

Download PTFE Zone Tapes Data Sheet

Additional information

Supplied in 30 Metre Rolls Unless Specified Differently

4x7x4 (15mm), 10x55x10 (75mm), 10x10x10 (30mm), 10x60x10 (80mm), 10x15x10 (35mm), 10x65x10 (85mm), 10x20x10 (40mm), 10x70x10 (90mm), 10x25x10 (45mm), 10x75x10 (95mm), 10x30x10 (50mm), 10x80x10 (100mm), 10x35x10 (55mm), 10x40x10 (60mm), 10x45x10 (65mm), 10x50x10 (70mm)
