PTFE Zone Tape – White 0.25mm TEFSIL® 10

£12.93£86.25 Exc. VAT

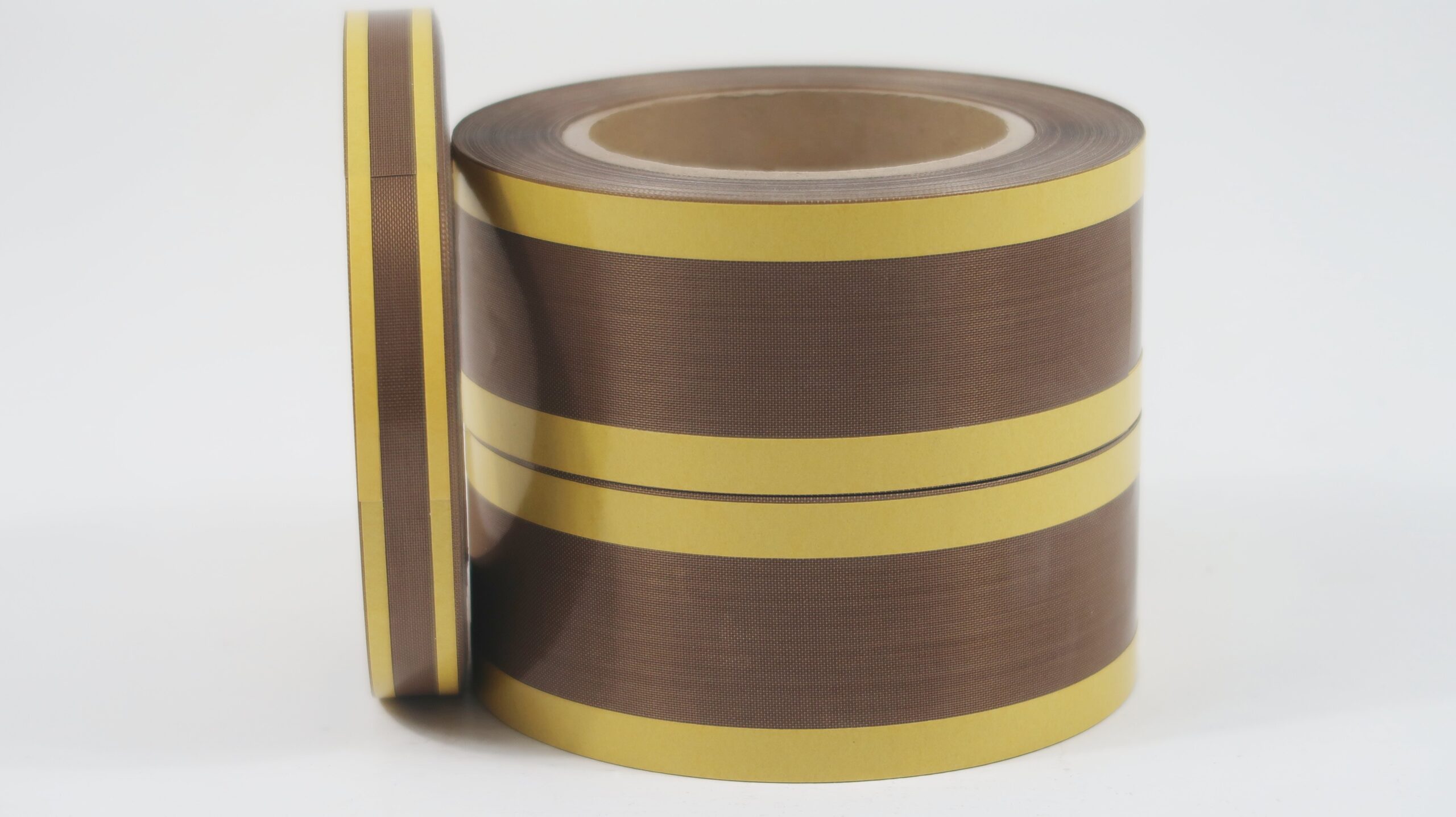

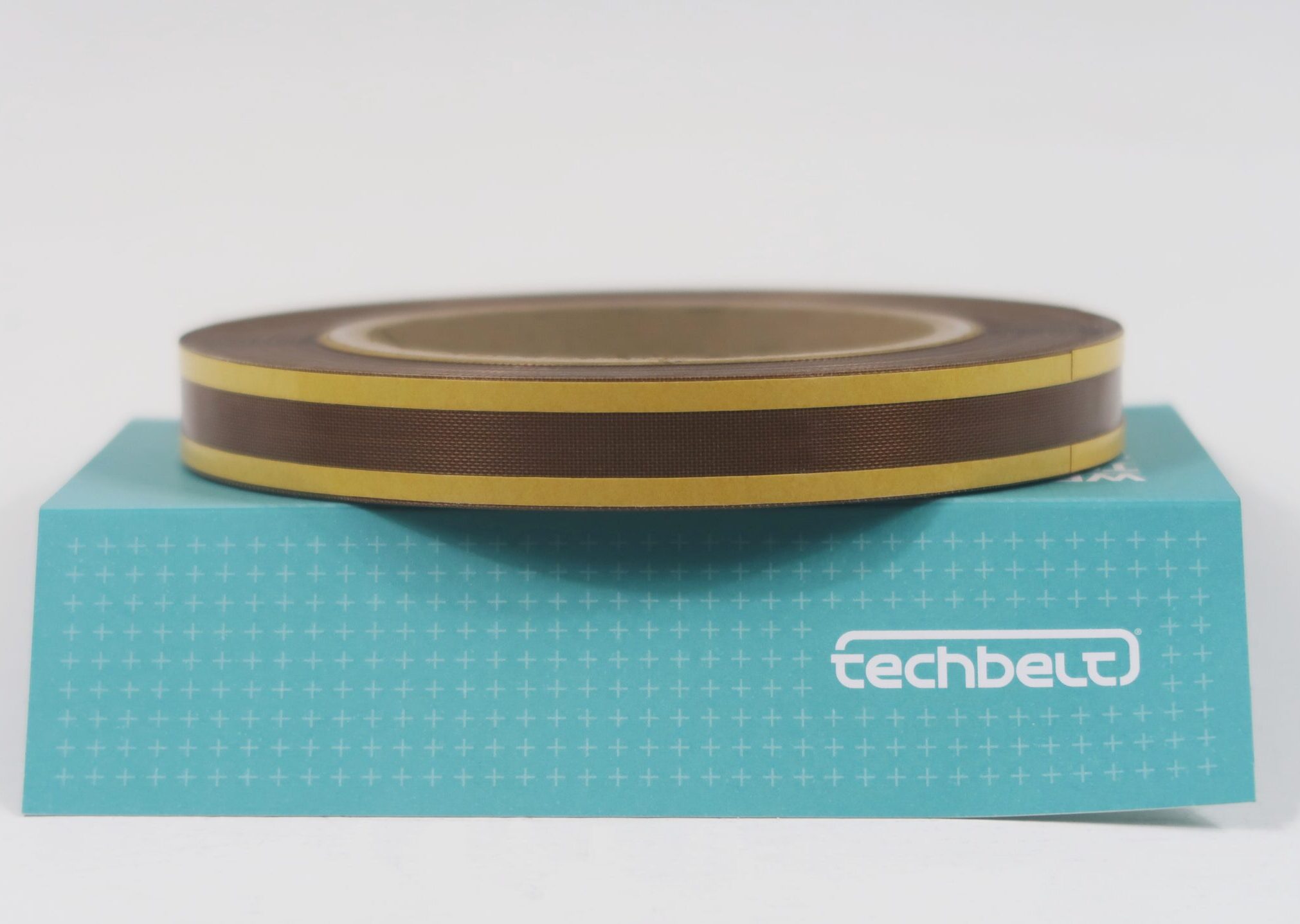

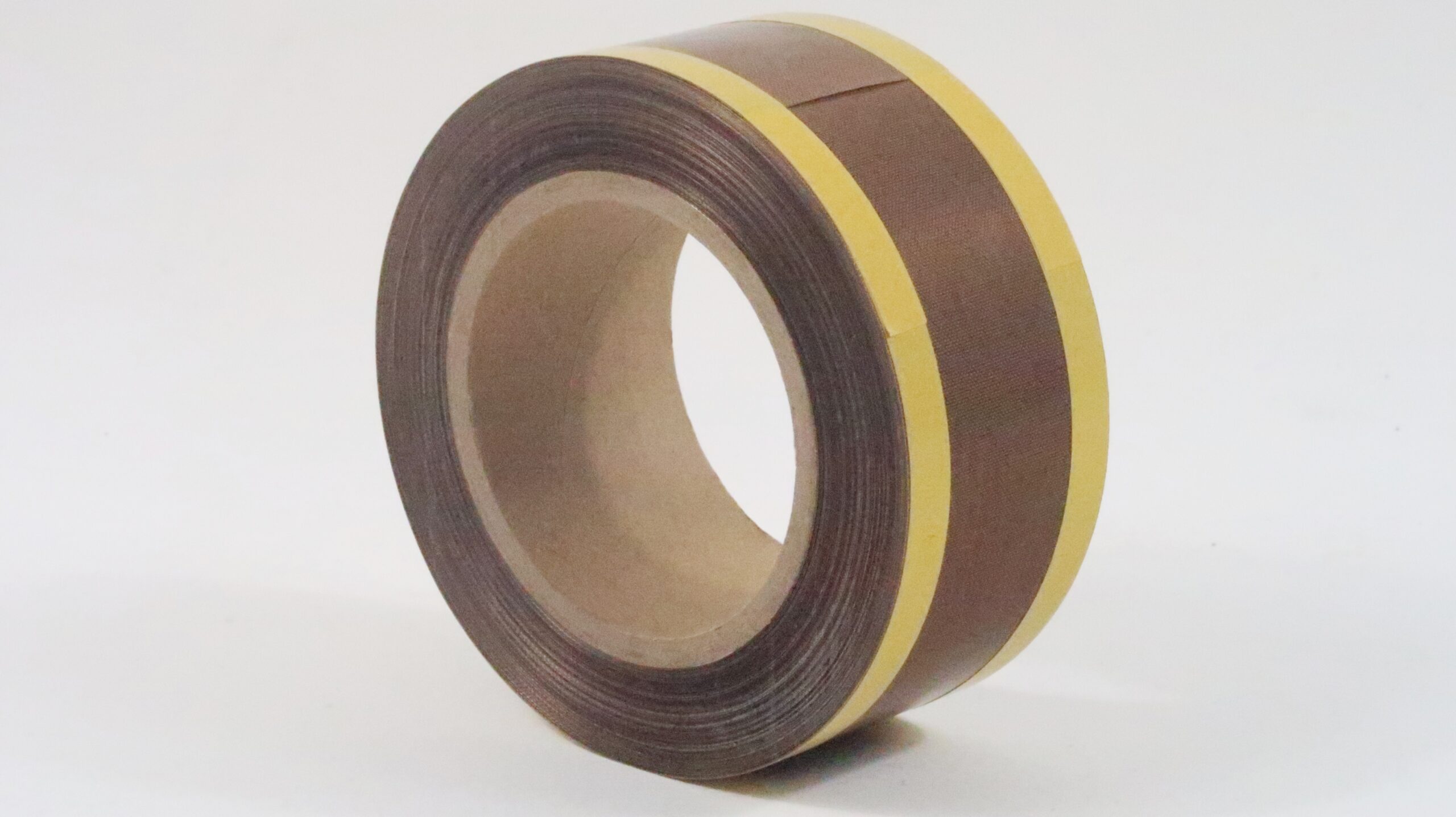

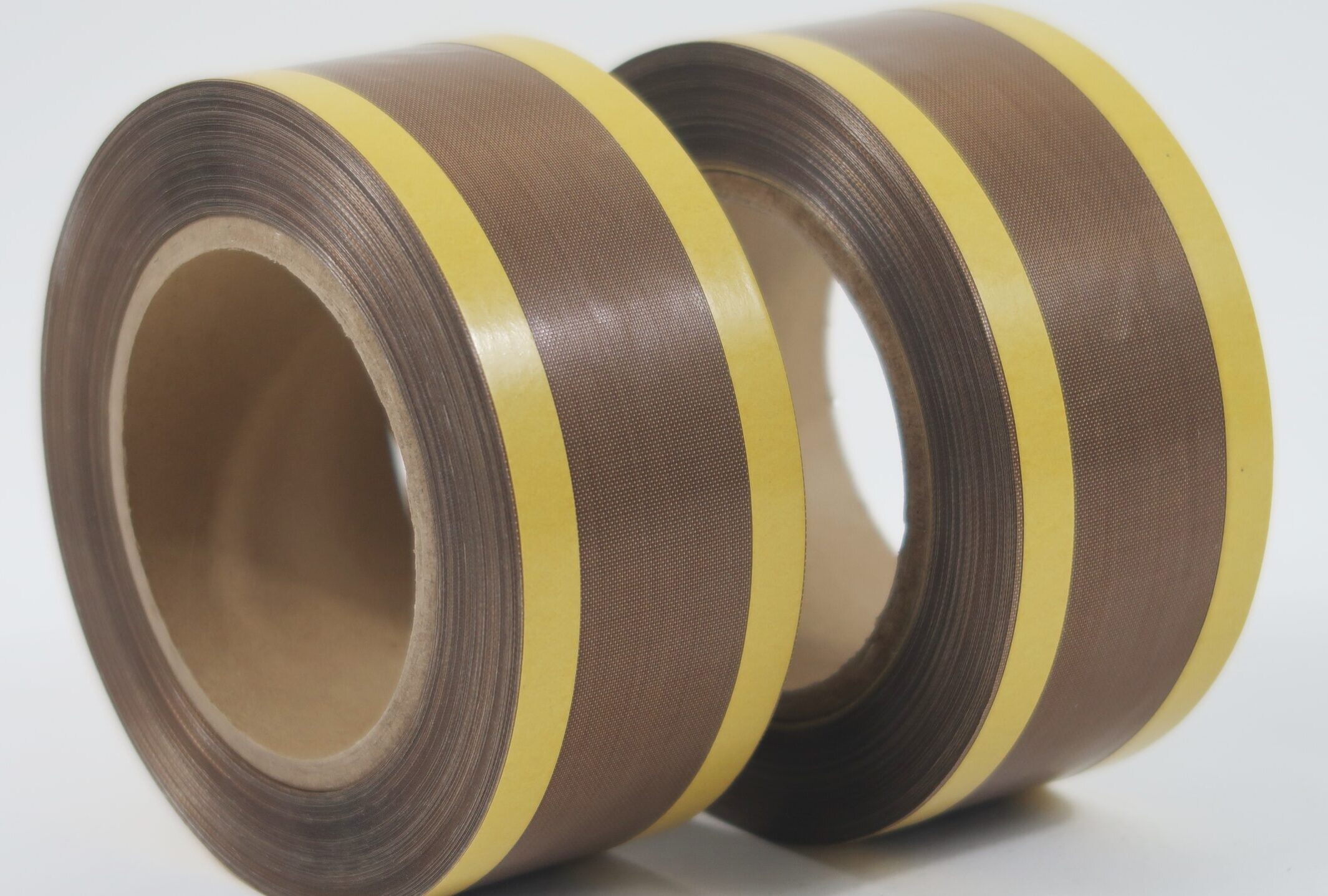

PTFE Zone Tapes are typically manufactured at 50mm wide and have two strips of 10mm wide double sided white tape running down both edges.

Techbelt is one of only a few companies actually manufacturing zone tape in house. The roll length on this product is 30mtr.

In Europe, these tapes are also referred to as PTFE (Teflon) Duplex tapes.

If your size is not shown please get in touch with our Technical sales team so we can quote your requirement on +44 (0) 1422 366386

International Shipping Available

Clear

Description

Application
The purpose of the double sided tape is to allow the tape to be easily wrapped around the block where the heating wire or element would sit. The double sided tape will stick to the main body of the block leaving the exposed PTFE adhesive tape (known as Teflon® tape) to protect the sealing wire. PTFE zone tapes are made to order. Generally we use either 10mm or 15mm wide double sided tapes down the edges, we can slit these to your preferred size. We offer two versions of double sided tape, one standard and one high performance. All rolls come on 30 meter coils, we can break them down to 3 x 10m coils for resale. Zone tapes are primarily used in applications where it is important that the adhesive doesn’t come in to contact with a heating element or it is necessary to cover an expensive component of a packaging machine such as silicone sponge or foam
General Info
Our zone tapes are custom made in house at our manufacturing facility which allows us to offer the tapes in a number of varying widths and thickness; so if the specific size you require is not listed, please contact our sales team on: +44 (0)1422 366386 and we will be glad to assist you with your requirements
• The Teflon element of our zone tapes can operate up to 260°C
• On white edged tapes, the double sided white edging can operate up to a temperature of 150°C
• On red edged tapes, the double sided red edging can operate up to a temperature of 180°C
Specification
• Reference: Tefsil 10 • Thickness: 0.23mm
• Glass Style: Singles • Weave: Plain
• Base Weight: 209g/m2 • Coated Weight: 480g/m2
• PTFE Coating: 54% • Surface Texture: Smooth
• Tensile Warp: 440 • Tensile Weft: 380
