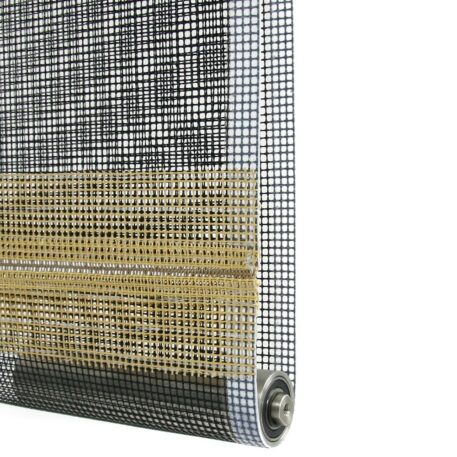

Panther Dryer Belt Various Sizes Available For Panther Machines

Description

Panther Dryer Belts – Applications
PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.

Panther Dryer Belts – Applications

PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.

Features & Benefits of Panther Dryer Belts
• PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace.
• Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money.
• This material can be offered in carbon loaded black therefore providing antistatic properties.

Material Properties
• High temperature resistant – up to 260°C
• Excellent release properties
• Exceptional chemical resistance

Additional Information
Available in widths up to 4000mm, manufactured in various thicknesses and weights. If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386 Our use of a trade mark is used in good faith to indicate the intended purpose of goods (in particular as accessories or spare parts) or services as detailed in the trade marks act 1995 section 122.

Additional Information

Available in widths up to 4000mm, manufactured in various thicknesses and weights. If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386

Our use of a trade mark is used in good faith to indicate the intended purpose of goods (in particular as accessories or spare parts) or services as detailed in the trade marks act 1995 section 122.

Specification
• Reference:	GM-95-AS (4×4)	• Colours:	Black
• Standard width:	Up to 4000mm	• Tensile strength:	3800 N/5cm
• Thickness:	0.95mm	• Temperature resistance:	260°C
• Weight:	460g/m2

Download PTFE Open Mesh Belts Data Sheet

We can cater for any special requirements you require for i.e custom sizes special widths, our team can help assist you with dispatch, customs and shipping, we ship to over 30 destinations and have been established for over 20 years. Please get in touch with our Technical Sales team on +44 (0) 1422 366386 or email at sales@techbelt.com

Additional information

Please Select Size and Model	600mm x 3250mm Mini dryer, 600mm x 4050mm WPS 600, 700mm x 4050mm Texitunnel 700, 700mm x 5650mm Texitunnel 700L, 700mm x 7660mm Texitunnel 8220, 900mm x 7660mm Texitunnel 8230, 1200mm x 8560mm Texitunnel 8240, 1600mm x 8560mm Texitunnel 8260
