PTFE Coated Mesh GM-155-NA

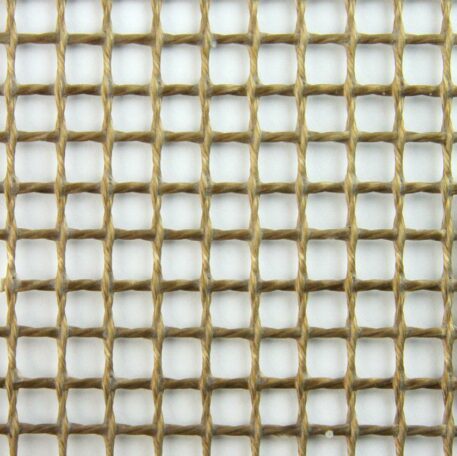

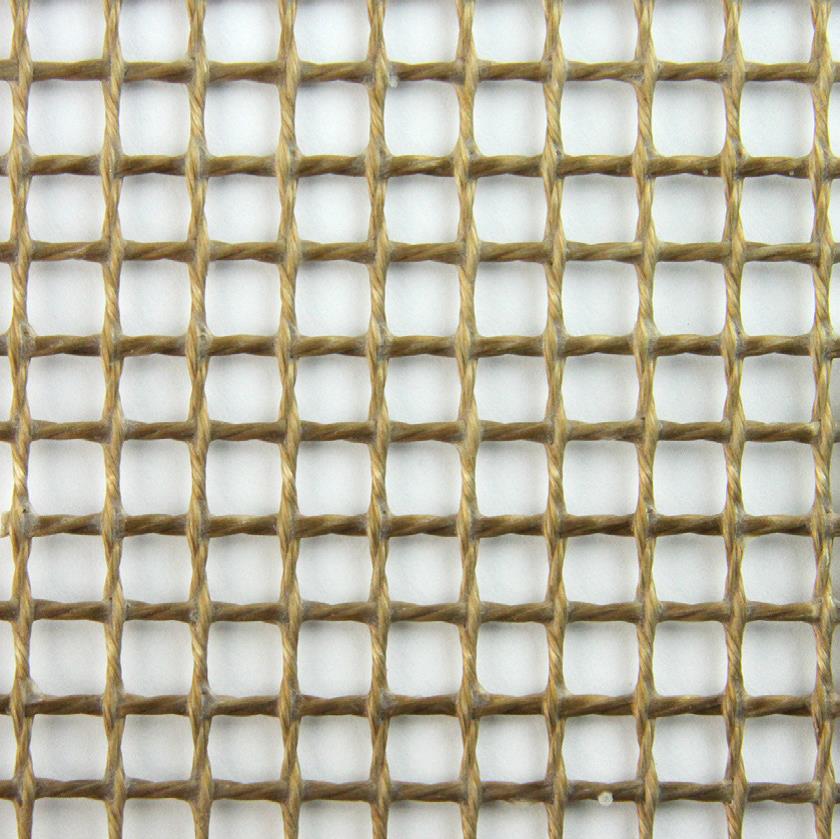

GM-155-NA is a 5mm square aperture PTFE coated mesh. This is suited for use as a finished conveyor belt when used for drying and curing inks on screen printed products such as point of display and t-shirts.

The material is suited to applications where slightly more airflow is required

Contact Us For Price & Availability International Shipping Available

Description

PTFE Coated Mesh – Applications
PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.

Other applications range from the drying of cereals, non wovens, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.

Features and Benefits of PTFE Coated Mesh
PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace.
Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money.
This material can be offered in carbon loaded black therefore providing antistatic properties.
Material Properties
● High temperature resistance – up to 260°C ● Excellent release properties ● Exceptional chemical resistance
Additional Information
Available in widths up to 5200mm, manufactured in various thicknesses and weights
If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386
Specification
• Reference: GM-155-NA (5×5) • Colours: Brown / Black
• Standard width: 3200mm • Tensile strength: 2400 N/5cm
• Thickness: 1.148mm • Temperature resistance: 260°C
• Weight: 540g/m2

We can cater for any special requirements you require for PTFE coated mesh i.e custom sizes special widths, our team can help assist you with dispatch, customs and shipping, we ship to over 30 destinations and have been established for over 20 years. Please get in touch with our Technical Sales team on +44 (0) 1422 366386 or email at sales@techbelt.com
