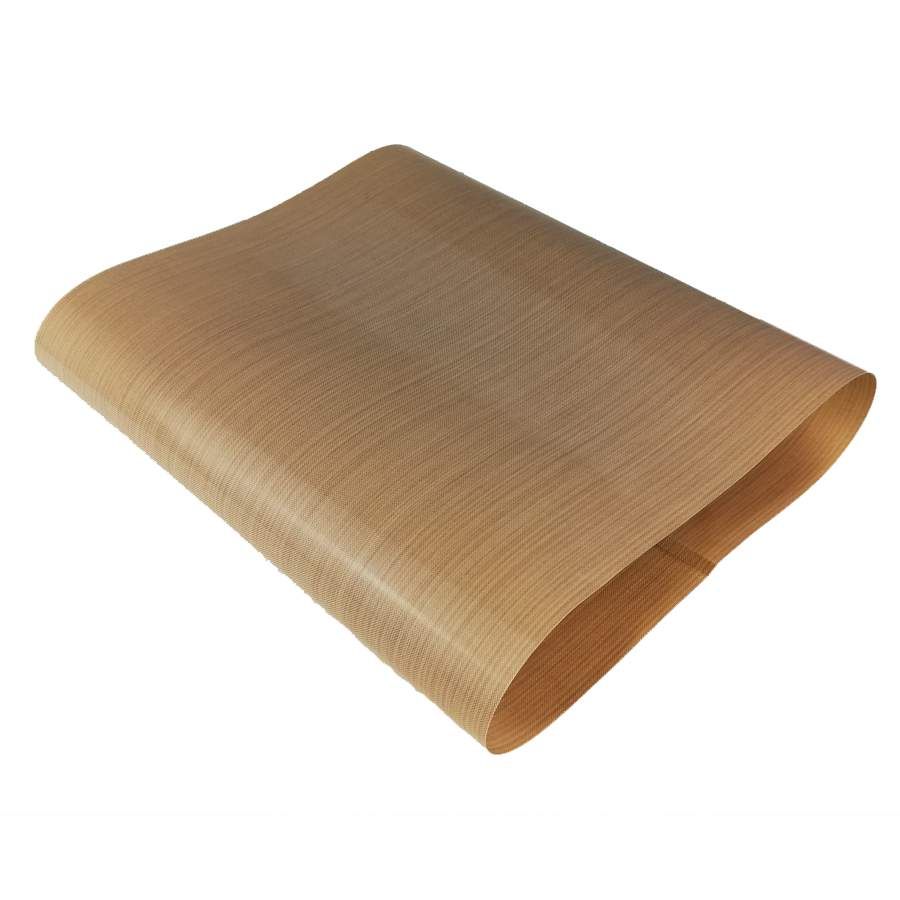

Rotox Hollinger MSE-II-EP-SB PTFE Release Sheet

Techbelt manufactures a range of PTFE (often incorrectly referred to as Teflon®) release sheets that are compatible with Rotox Hollinger UPVC window machinery.
We use a premium grade Tefsil 6 product to make these endless loops. Our material has a coated weight of 300g per m2.
We heat seal the sheet endless using specially made equipment. Our purpose-designed machines allow for the perfect seal and longevity of your sheet.

Cut Size: 225 mm x 440 mm
Finished Size: 225 mm x 215 mm
Material: Tefsil 6

Please be aware that any use of trademarks and tradenames are purely to advise the types of machines our products will fit.

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to sales@techbelt.com, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**

Worldwide Shipping Available

£3.36 Exc. VAT

Rotox Hollnger MSE-II-EP-SB Release Sheet

Description

Applications
• Packaging • PTFE Adhesive Tapes
• Printing • Open Weave Mesh Belting
• Textiles • Closed Weave and Mesh Belting
• UPVC Window Welding • Non and Self Adhesive Materials
Features & Benefits
The properties of the PTFE coated materials ensure that the fabrics are an excellent choice for use with cooling chambers and freezing temperatures as well as high thermal environments. The PTFE is coated on to either a fibre glass or Kevlar substrate. Both offer high levels of temperature resistance; however the Kevlar can be beneficial in applications where strength is required or steam is present
Material Properties
• Chemical inertness: affected only by a few rare substances at very high temperatures • High release from sticky materials ‘non-stick’
• Easy cleaning (nothing bonds permanently) • Low friction co-efficient: 0.04 – 0.10; depending on load and surface speed
• Chemical corrosion and moisture resistance • Mildew and fungus resistance
• Outstanding electrical and dielectric properties • Ultra-violet, infra-red, microwave and radio frequency resistance
• Non-combustible – self extinguishing • Low thermal expansion: <5%
Specification
• Reference: Tefsil 6 • Thickness: 0.15mm
• Glass Style: Singles • Weave: Plain
• Base Weight: 106g/m2 • Coated Weight: 305g/m2
• PTFE Coating: 66% • Surface Texture: Smooth
• Tensile Warp: 270 • Tensile Weft: 240

Download Techweld Release Sheets Data Sheet

Additional information

Select size

225mm x 215mm – £2.80
