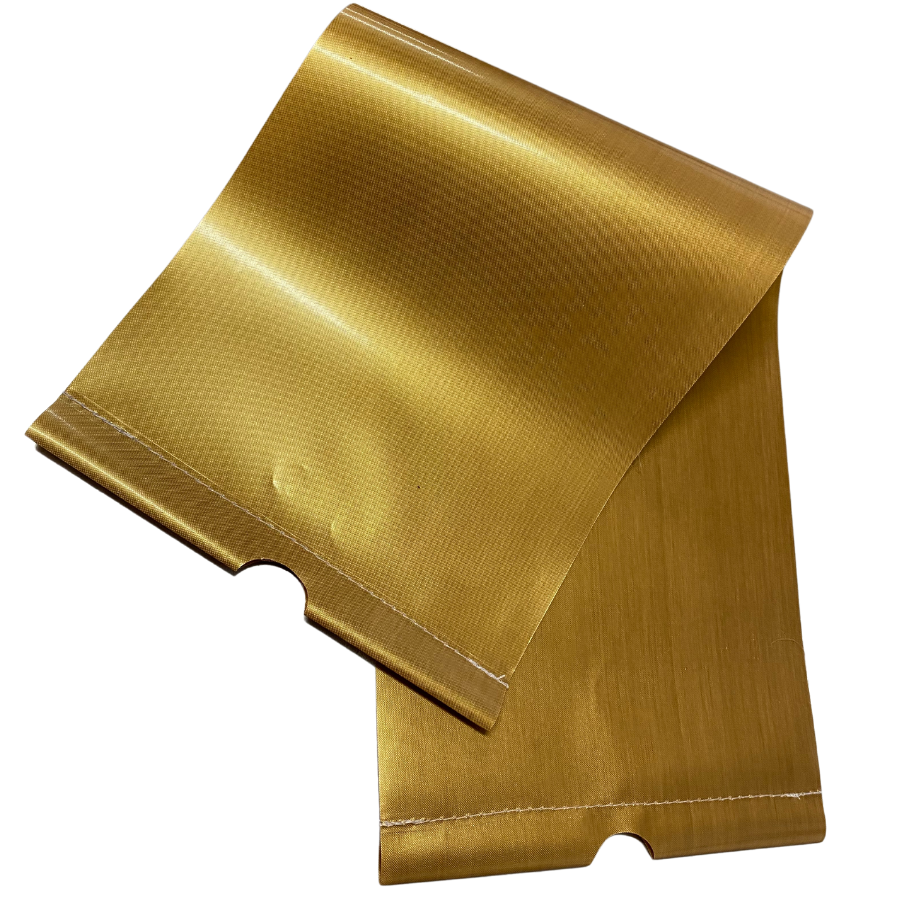

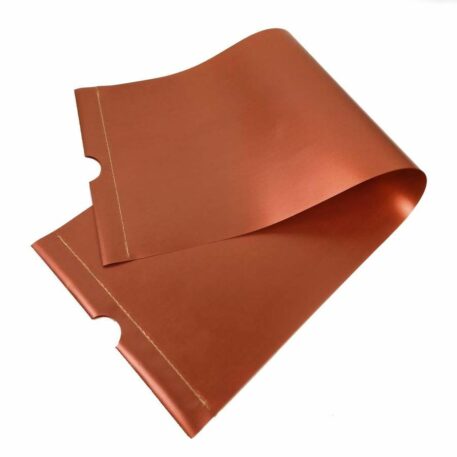

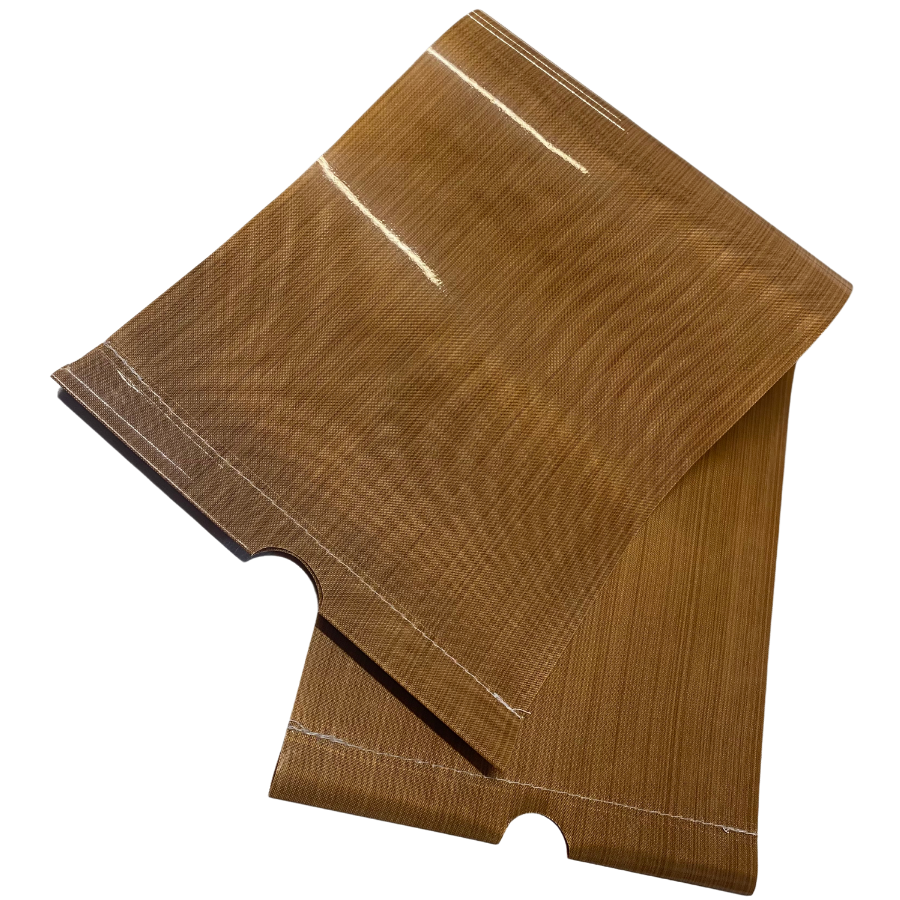

Urban UPVC Window Welding Release Sheets 200 x 584mm

Techbelt manufactures release sheets compatible with all URBAN UPVC window welding machines.
All URBAN compatible sheets offered by Techbelt are made in house. This gives us full control over our process and quality.

We use a high strength Aramid (Kevlar) sewing yard to secure the folded ends, ensuring they will not come loose.

This sheet size will suit: URBAN AKS 1410 | URBAN SH 6100 | SH100 URBAN AKS V610 | URBAN AKS 6110 /8 -45 /30 |

Urban AKS 1805 28/16 Quad Welder | AKS 6110/6-35/25

Cut size: 200mm x 636mm
Finished size: 200mm x 584mm

Please be aware that any use of trademarks and tradenames are purely to advise the types of machines our products will fit.

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to sales@techbelt.com, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**

Worldwide Shipping Available

£3.78£4.90 Exc. VAT

Description

UPVC Release Sheets 200 x 584mm By Urban – Applications
• UPVC Window Welding
Features & Benefits UPVC Release Sheets 200 x 584mm By Urban
The properties of the PTFE coated materials ensure that the fabrics are an excellent choice for use with cooling chambers and freezing temperatures as well as high thermal environments. The PTFE is coated on to either a fibre glass or Kevlar substrate. Both offer high levels of temperature resistance; however the Kevlar can be beneficial in applications where strength is required or steam is present
Material Properties UPVC Release Sheets 200 x 584mm
• Chemical inertness: affected only by a few rare substances at very high temperatures • High release from sticky materials ‘non-stick’
• Easy cleaning (nothing bonds permanently) • Low friction co-efficient: 0.04 – 0.10; depending on load and surface speed
• Chemical corrosion and moisture resistance • Mildew and fungus resistance
• Outstanding electrical and dielectric properties • Ultra-violet, infra-red, microwave and radio frequency resistance
• Non-combustible – self extinguishing • Low thermal expansion: <5%
Specification
• Reference: Tefsil 6 • Thickness: 0.15mm
• Glass Style: Singles • Weave: Plain
• Base Weight: 106g/m2 • Coated Weight: 305g/m2
• PTFE Coating: 66% • Surface Texture: Smooth
• Tensile Warp: 270 • Tensile Weft: 240

Download Techweld Release Sheets Data Sheet

Additional information

Select Material Colour

Tefsil 6 Brown, Tefsil 6 Bronze, Tefsil 6 Gold
