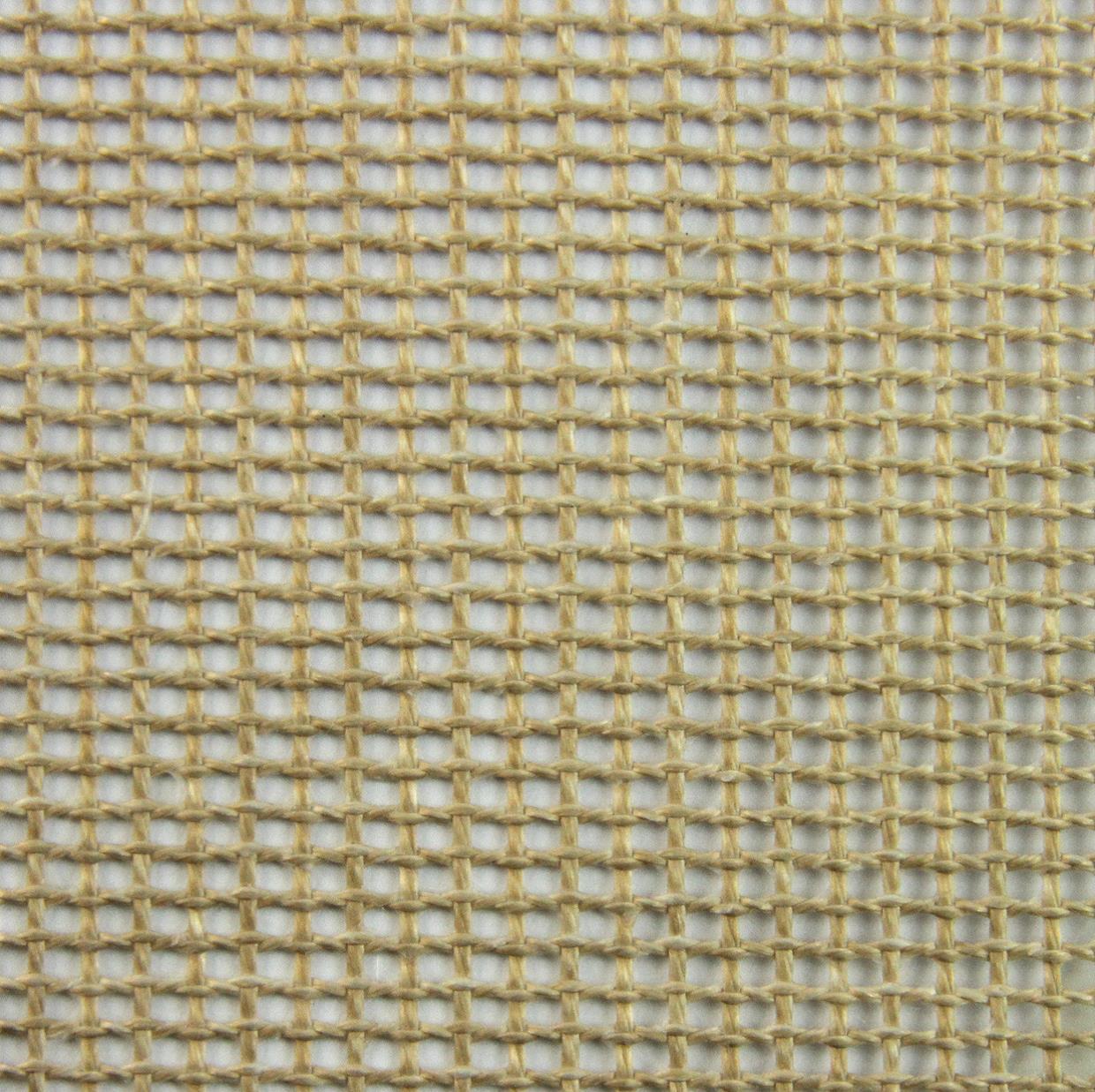

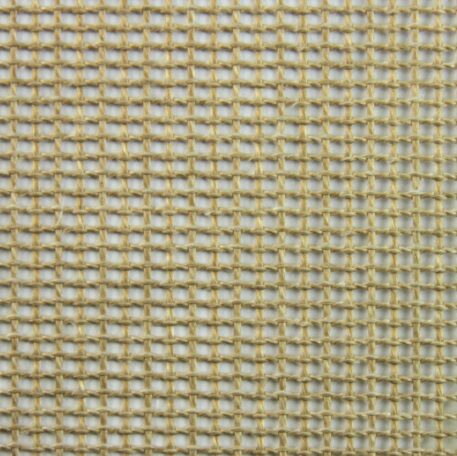

PTFE Mesh Conveyor Belt Material GM-82-NA is a 2mm square aperture PTFE coated mesh.
This is suited for use as a finished conveyor belt when used for drying and conveying smaller products such as cereal where more airflow is required.
We can manufacture any belt size up to 5000mm wide and to your required length.
| Applications |
|---|
| PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.
Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few. |
| Features & Benefits |
|---|
| PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace. Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money. This material can be offered in carbon loaded black therefore providing antistatic properties. |
| Material Properties | ||
|---|---|---|
| ● High temperature resistant – up to 260°C | ● Excellent release properties | ● Exceptional chemical resistance |
| Available in widths up to 3600mm, manufactured in various thicknesses and weights If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386 |
| Specification | |||
|---|---|---|---|
| • Reference: | GM-82-NA (2×2) | • Colours: | Brown / Black |
| • Standard width: | 3600mm | • Tensile strength: | 3500 N/5cm |
| • Thickness: | 0.82mm | • Temperature resistance: | 260°C |
| • Weight: | 455g/m2 | ||
| Supplied by the metre | 840mm wide x 16794mm long, 1000mm wide, 2750mm wide, 3600mm wide |
|---|
