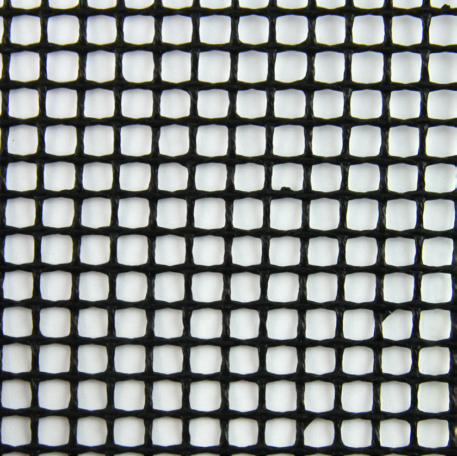

PTFE Glass Mesh GM-95-AS is a 4mm square aperture PTFE coated mesh.
This black product has a carbon loading in the PTFE giving it anti-static properties.
It’s suited for use as a finished conveyor belt when used for drying and curing inks on screen printed products such as point of display and t-shirts.
For more information on this product please contact our team at – sales@techbelt.com or call us at +44 (0) 1422366286
| Applications for PTFE Glass Mesh GM-95-AS |
|---|
| PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts clothing, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry the materials.
Other applications range from the drying of cereals, non woven fabrics, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few. |
| The Features and Benefits of PTFE Glass Mesh GM-95-AS |
|---|
| PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace. |

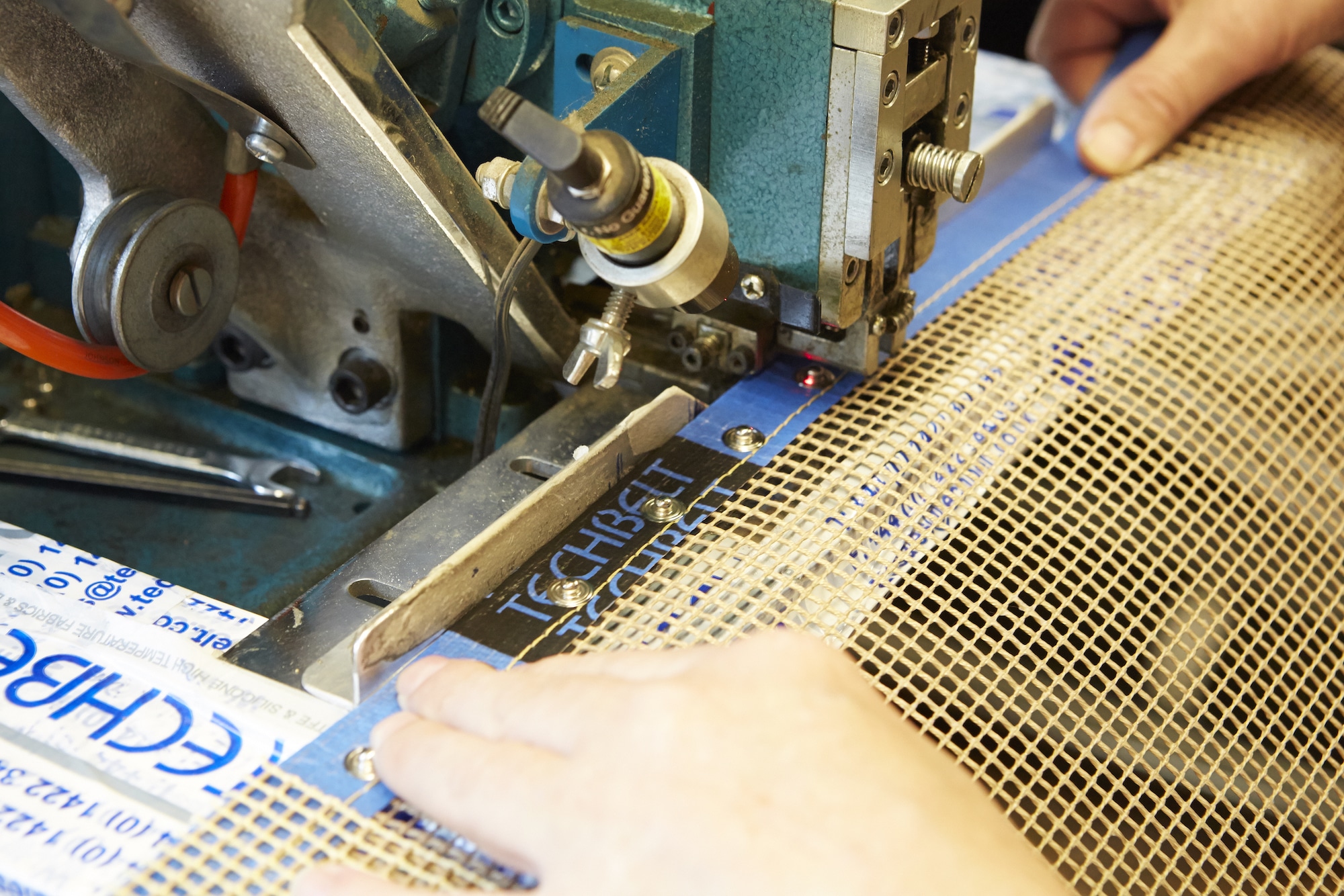

| Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money. |
| This material can be offered in carbon loaded black therefore providing antistatic properties. |
| Material Properties | ||
|---|---|---|
| ● High temperature resistant – up to 260°C | ● Excellent release properties | ● Exceptional chemical resistance |
| Available in widths up to 4000mm, manufactured in various thicknesses and weights If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386 |
||
| Specification | |||
|---|---|---|---|
| • Reference: | GM-95-AS (4×4) | • Colours: | Brown / Black |
| • Standard width: | 3600mm | • Tensile strength: | 3800 N/5cm |
| • Thickness: | 0.95mm | • Temperature resistance: | 260°C |
| • Weight: | 460g/m2 | ||
