PTFE Coated Kevlar Mesh KM-90-NA

(In stock- Contact sales for more information)

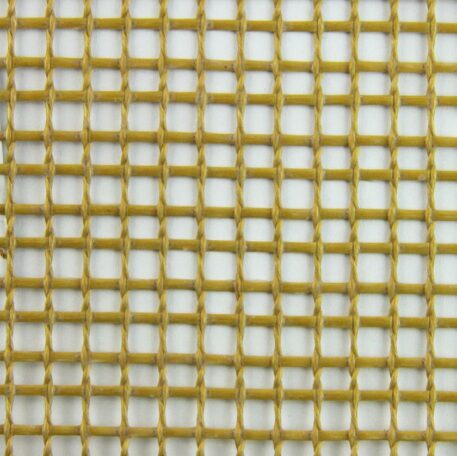

KM-90-NA is a 4mm square aperture PTFE coated open aramid mesh. As a conveyor belt it provides excellent durability in the most challenging drying applications. Unaffected by steam, it is very effective in high temperature food manufacturing processes International Shipping Available

Please contact our technical sales team to find out more information on the availability of this product.

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**


Applications For PTFE Mesh KM-90-NA
PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.

Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few. Replacement natgraph dryer belts are also manufactured from our ptfe coated glass cloth mesh.

Features & Benefits of PTFE Mesh KM-90-NA
PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace.
Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money.
Material Properties
• High temperature resistant – up to 240°C • Excellent release properties • Exceptional chemical resistance
Available in widths up to 3200mm, manufactured in various thicknesses and weights
If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386
• Reference: KM-90-NA (4×4) • Colours: Brown
• Standard width: 3200mm • Tensile strength: 5600 N/5cm
• Thickness: 0.909mm • Temperature resistance: 240°C
• Weight: 285g/m2

We can cater for any special requirements you require i.e custom sizes special widths, our team can help assist you with dispatch, customs and shipping, we ship to over 30 destinations and have been established for over 20 years. Please get in touch with our Technical Sales team on +44 (0) 1422 366386 or email at

Additional information

Supplied by the metre

1000mm wide, 2750mm wide, 3200mm wide
