Baler Belts for Vermeer Round Baler Machines

Techbelt is a manufacturer of aftermarket round baler belts made to fit a wide range of round baler machines available such as Vermeer.

Our Vermeer Baler Belts are not genuine OEM parts and are aftermarket products which are hand cut and customised to suit your machine. We carry a large amount stock and can dispatch these in 5-7 days from placing your order – Sooner if required.

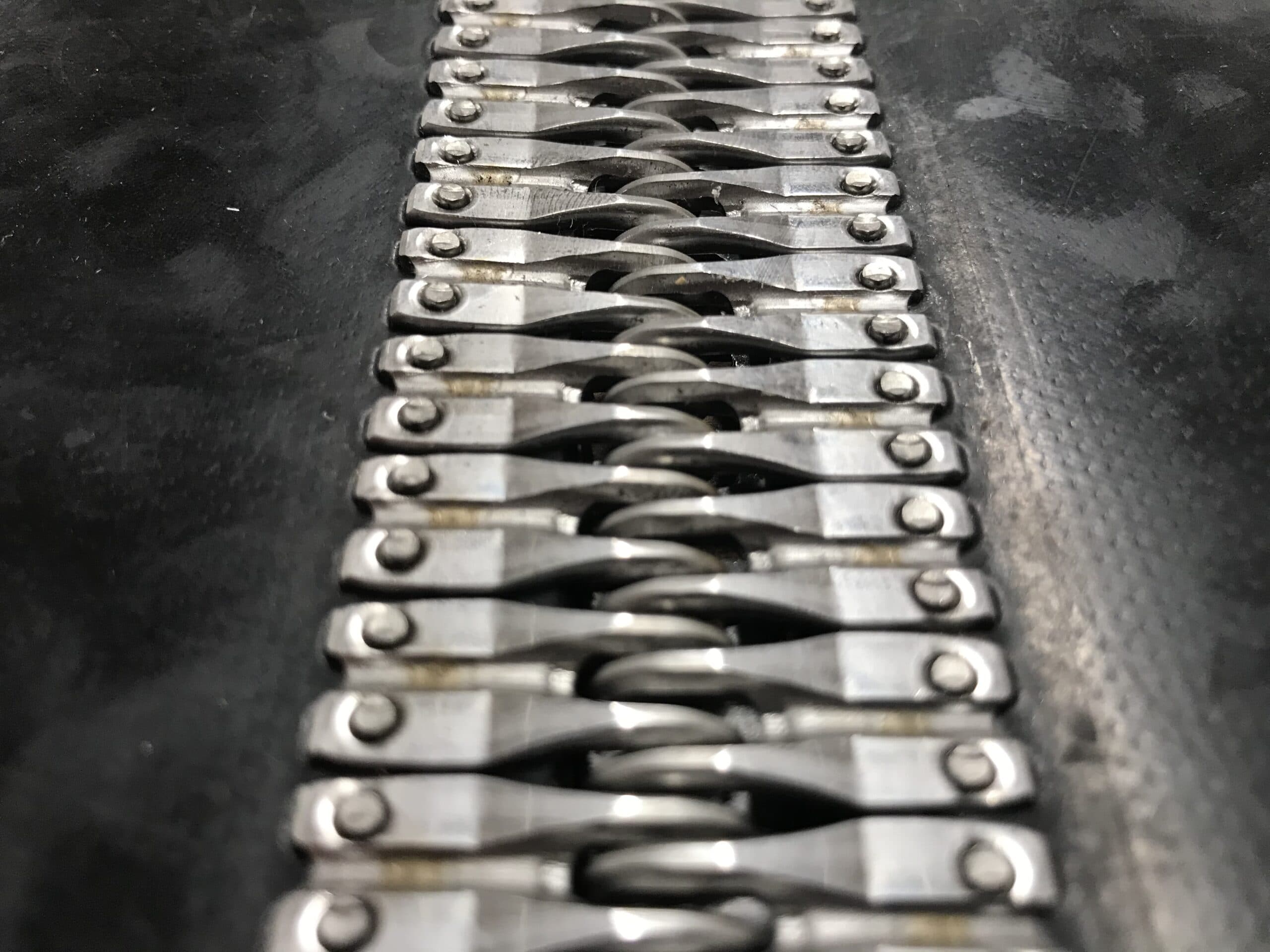

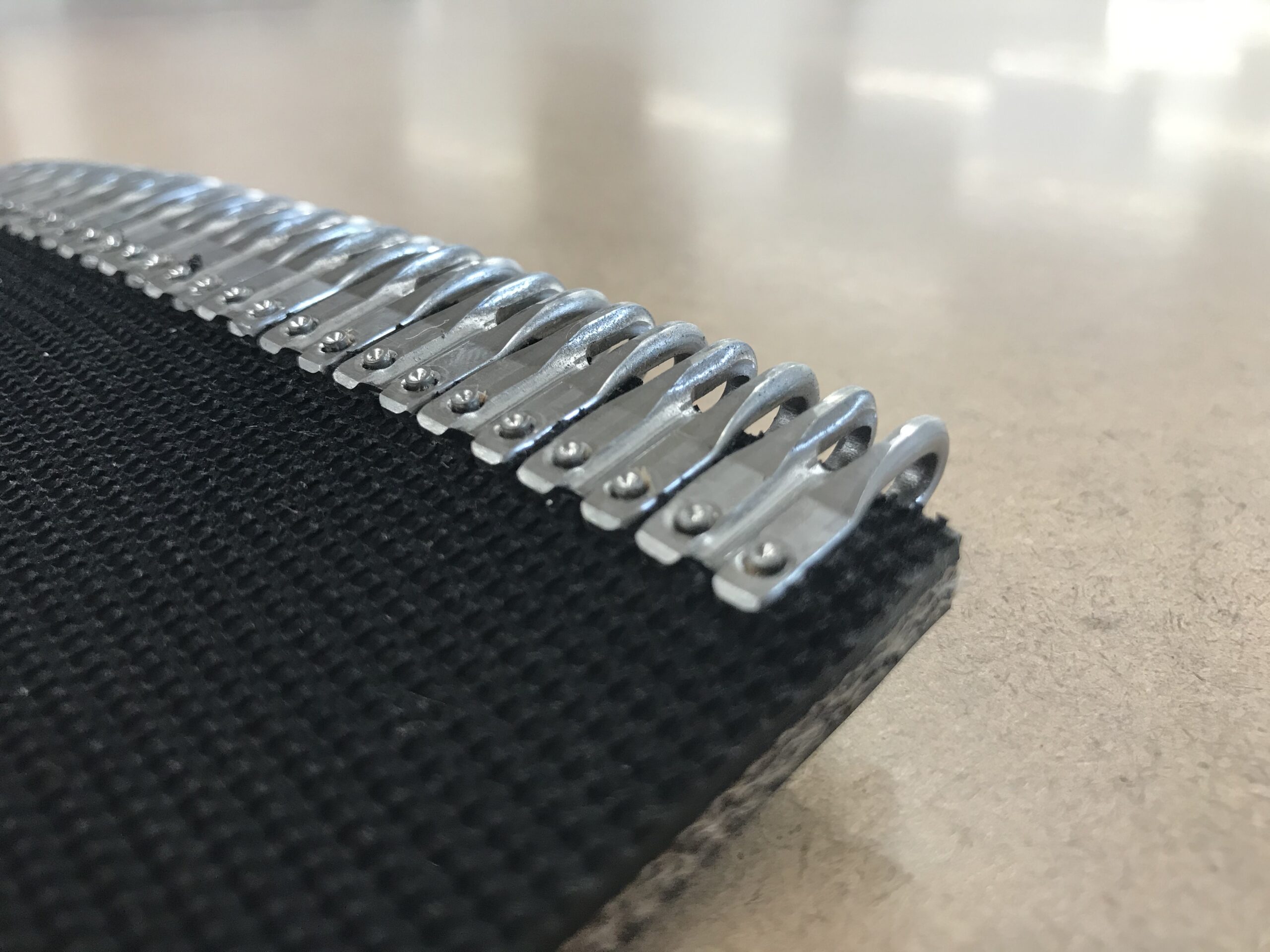

We only use the highest quality materials that in our opinion match the quality of genuine dealer parts. The belts come with a MATO clipper fastener for ease of installation

Our Belts are sold as a singular belt but can also be purchased as a set. We are offering a discount of 5% at checkout on belt sets use code balerbeltsetpromo for a limited time only.



** Please note our belts are between 5.2mm and 5.6mm We recommend you check your current baler belt thickness before ordering. If your belt is not the same, then we recommend you do not purchase it. Once manufactured we cannot offer a refund. This is because our belts are bespoke and are made to order.

The belts are sold on the understanding they will be fitted by an experienced and knowledgeable installer. It is imperative that the Mato fastener is joined in such a way as to ensure the edges of both ends are perfectly parallel and in line. It is also critical that the belts are not over-tensioned. If any of the above are not adhered to, this can cause the belts to prematurely fail, track off, or bow. **

Bold Sale Brand Website
Seen It Cheaper?

If you’ve seen a product we sell cheaper elsewhere,  please email the quotation to sales@techbelt.com, and we’ll do our best to match or beat the price.

**Your email will be treated with the strictest of confidentiality**

This item qualifies for Free Shipping we offer competitive International Shipping calculated at checkout

£239.20£240.59 Exc. VAT

Description

Dimensions
• Belt Thickness (mm) 5.2 • Weight (kg/ml) 6
• Top Cover Thickness (mm) 1.5 • Bottom Cover Thickness (mm) 0.5
• Operating Temperature -25 to +80°C • Maximum Width 1400mm
Construction Mechanical Properties
• Carcass Type Plied • Warp Yarns Polyester
• Number of Plies 3 • Tensile Strength Warp (ISO 283) >315 N/mm
• Elongation at Break Warp (ISO 283) >10% • Elongation Under 10% Load (ISO 283) < 1.5%
• Adhesion Between Cover & Carcass (ISO 252) > 4 N/mm • Adhesion Between Plies & Plies (ISO 252) > 4.5 N/mm
Cover Mechanical Properties
• Tensile Strength at Break (ISO 37) > 18 MPa • Elongation at Break (ISO 37) > 450%
• Abrasion (ISO 4649) < 170 mm³ • Hardness (ISO 868) 62

Download Round Baler Belt Material Data Sheet

Download Round Baler Belt General Information

Additional information

Vermeer Baler Model Size

Vermeer 503l 153mm x 10870mm, Vermeer 504 super l 153mm x 10780mm, Vermeer 505 super l 153mm x 10780mm
