Replacement Conveyor Belt Screen-Printing

Techbelt offer a wide range of replacement conveyor belts for screen-printing companies.

Replacement Conveyor Belt Screen-Printing are used for curing screen printed products. Produced in a number of styles for various applications.

They can range in size from quite small occasional use ovens to larger industrial versions geared toward high volume output and all use Techbelt PTFE non stick belts.

There are three main types of conveyorised dryers available that utilise forced air, ultra violet radiation or infra red energy. All these machines use screen printing dryer belts.

Polyester mesh belts will operate at temperatures of up to 120 degrees Celsius and the PTFE screen printing belts would work at temperatures of up to 260 degrees Celsius.

Infra red dryers are designed for curing similar inks to forced air types. Discharge, Water Based, Plastisol and 2 pack inks can be processed through these highly versatile Infra red units.

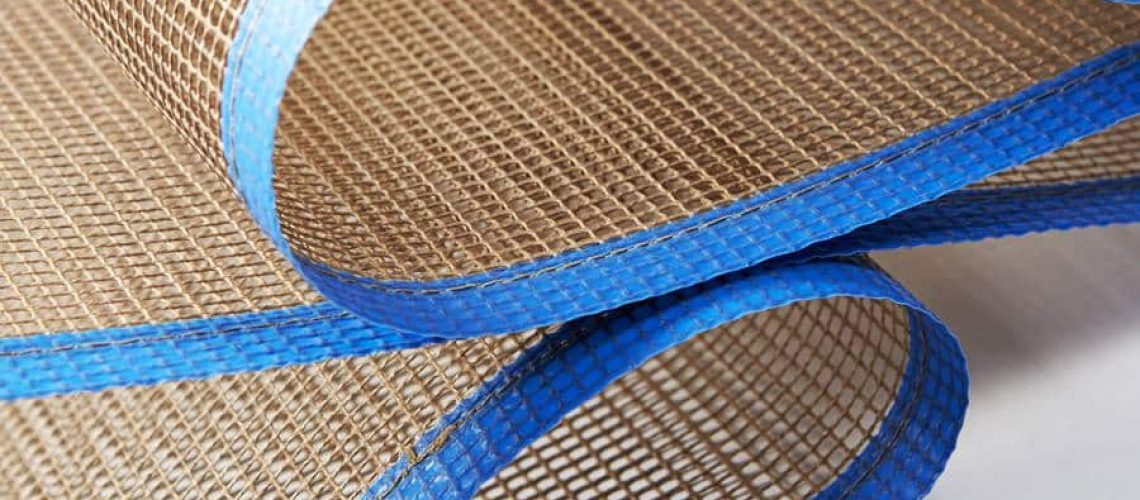

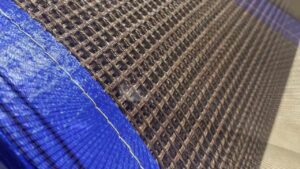

Many types of belt edge reinforcements can be used with PTFE mesh belts. PTFE films are preferable with IR dryers as PTFE coated glass cloth and Kevlar types can be prone to cracking due to the intensity of the heat and continual flexing.
